| Place of Origin: | China |
| Brand Name: | Yinchen |
| Certification: | ISO SGS CE |
| Model Number: | WNS |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 200 set per month |
| Packaging Details: | Regular package--boiler body nude,accessories in wood box |
| Delivery Time: | 10-15 working days after advanced payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 3500-89000USD |
| Item Name: | Steam Boiler For Rubber Industry | Boiler Type: | Horizontal |
|---|---|---|---|
| Suitable Fuel: | Light Oil-diesel,heavy Oil Gas-Natural Gas,LNG,CNG,LPG Etc | Structure: | Fire Tube Wet Back Structure |
| Rated Pressure: | 0.7Mpa 1.0Mpa 1.25Mpa | Colour: | Customized |
| Material: | Q245R | ||
| High Light: | oil fired condensing boilers,3 pass fire tube boiler |
||

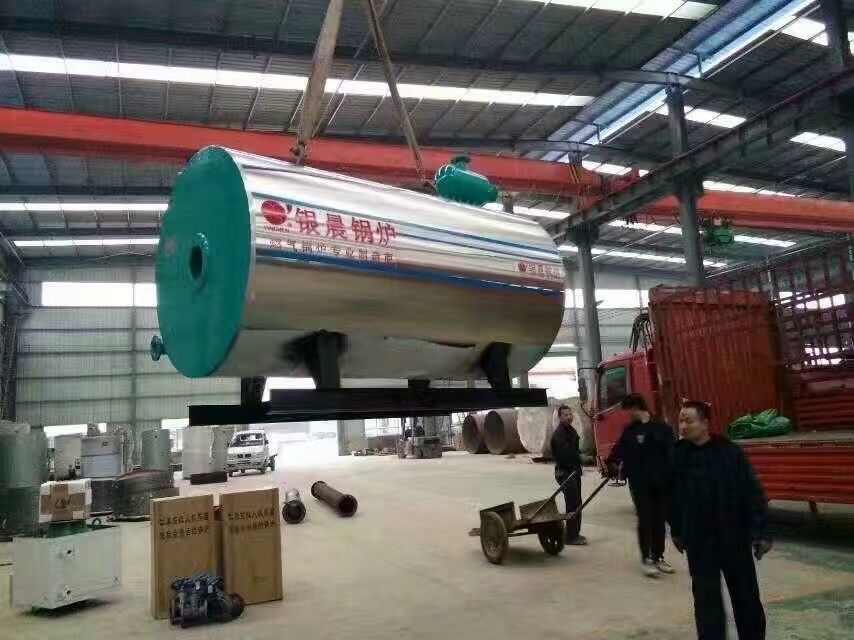

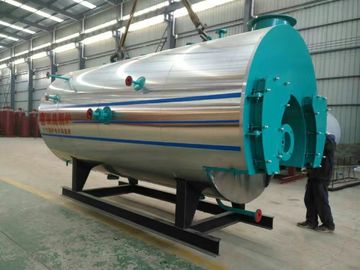

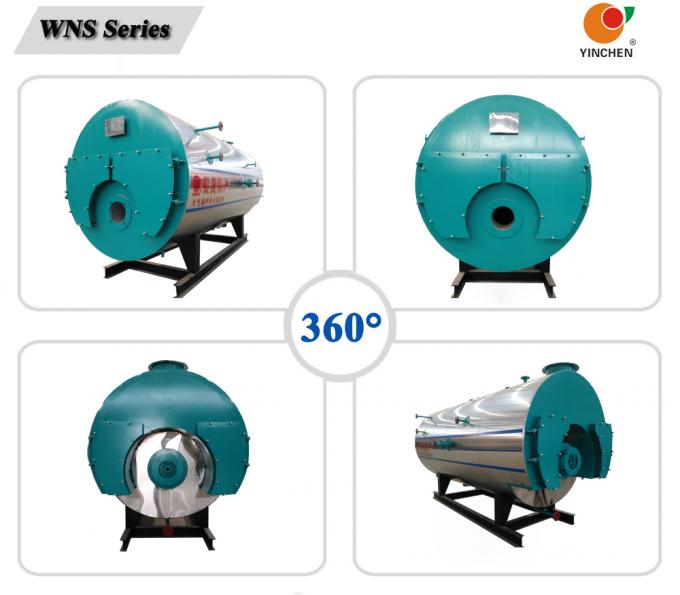

Fire Tube Industrial Steam Boilers Energy Saving High Efficiency Oil Boiler
Product Introduction

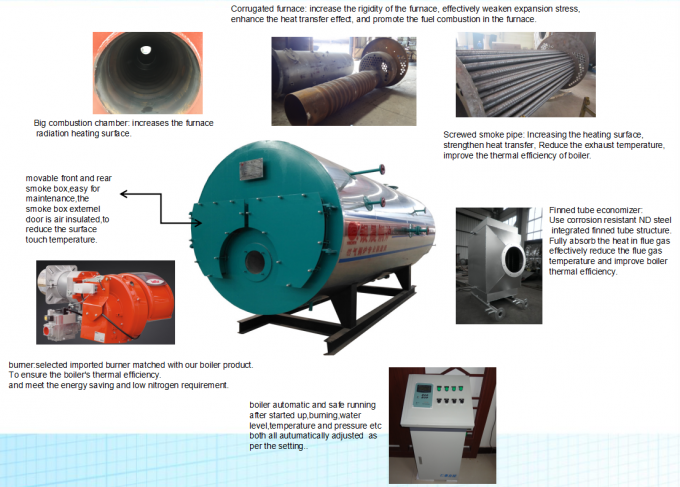

1. Adopts horizontal type three pass structure, absorbs the thermal expansion effectively. Uses large diameter corrugated furnace, large combustion space, high combustion efficiency.
2. Equipped with multiple safety protection devices, such as pressure controller, pressure transmitter, water level alarm, safety valve, etc.
3. Adopts PLC full automatic intelligent control cabinet and interlock protection program, has the protection function of water shortage, over pressure, over temperature, gas leakage, flame out, electric leakage, and phrase-lacking or overloading of motor, etc.
4. Equipped with reliable boiler auxiliaries,such as world known famous burner.international famous brand water pump and electric control elements, American Fleck brand water softener.
5. Adopt the latest boiler technology, 100% flaw detection test, high quality, and long working life, low maintenance fee.
Boiler working principle and flue gas process
After the fuel and air are fully mixed, they are ignited and burned to produce high-temperature flue gas. The boiler furnace is positive pressure.
After the high-temperature flue gas is burned in the furnace, it enters the second return thread pipe bundle through the back combustion chamber, and then passes through the front cigarette box. Into the third return thread pipe bundle, and finally discharged into the atmosphere.
The boiler furnace, the back combustion chamber and the smoke pipe are all immersed in water. During the flow of the flue gas, these components exchange heat by the temperature difference between the flue gas and the water, and the steam is generated by the main steam valve.
Technical Parameter
| Type | WNS0.5-1.0-Y(Q) | WNS1-1.0-Y(Q) | WNS2-1.0-Y(Q) | WNS3-1.25-Y(Q) | WNS4-1.25-Y(Q) | WNS6-1.25-Y(Q) | WNS8-1.25-Y(Q) | WNS10-1.25-Y(Q) |
|
Rated Output (t/h) |
0.5 | 1 | 2 | 3 | 4 | 6 | 8 | 10 |
|
Rated Steam Pressure (Mpa) |
1.0 | 1.0 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 |
|
Steam Temperature (℃) |
184 | 184 | 194 | 194 | 194 | 198 | 194 | 194 |
|
Thermal Efficiency (%) |
92.2 | 92.4 | 92.5 | 92.5 | 92.8 | 93.2 | 93.5 | 93.8 |
|
Power Consumption (Kw) |
2.96 (2.96) |
4.4/8.9 (3.7) |
7/20.2 (7) |
9.5/22.7 (10.5) |
13/26.2 (13.5) |
23/45.4 (20.5) |
24/37.5 (24) |
39.5/52 (39.5) |
| Suitable Fuel | Light Oil/ Heavy oil, Natural gas/ Town gas, Coke oven gas | |||||||
| Power Supply(AC) | 380V 50Hz | |||||||
Why Choose us?
1. Adopts horizontal type three pass structure, absorbs the thermal expansion effectively. Uses large diameter corrugated furnace, large combustion space, high combustion efficiency.
2. Equipped with multiple safety protection devices, such as pressure controller, pressure transmitter, water level alarm, safety valve, etc.
3. Adopts PLC full automatic intelligent control cabinet and interlock protection program, has the protection function of water shortage, over pressure, over temperature, gas leakage, flame out, electric leakage, and phrase-lacking or overloading of motor, etc.
4. Equipped with reliable boiler auxiliaries,such as world known famous burner, international famous brand water pump,Siemens brand electric control elements, American Fleck brand water softener, etc
5. Adopt the latest boiler technology, 100% flaw detection test, high quality, and long working life, low maintenance fee.
Welcome your inquiry to get more information and best price!
