| Place of Origin: | China |
| Brand Name: | Yinchen |
| Certification: | ISO SGS CE GB |
| Model Number: | DZH |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | usd 5000-59800 set |
| Packaging Details: | The boiler body,big supply equipment and chimney naked; Some spare parts will be packed by standard wooden case. |
| Delivery Time: | 1-20 working days |
| Payment Terms: | L/C, T/T, MoneyGram |
| Supply Ability: | 5000 set month |
| Name: | Wood Or Coal Fired Steam Boilers | Rated Steam Capacity: | 1t/h 2t/h 3t/h 4t/h |
|---|---|---|---|
| Structure: | Water And Fire Tube | Thermal Efficiency: | About 80% |
| Fuel: | Biomass, Coal, Wood. Etc | Design Pressure: | 0.7 -1.25 Mpa |
| Steam Temperature: | 170-194 ℃ | Boiler Type: | Hand Fired Boiler |
| Gate: | Moving Grate | ||
| High Light: | coal fired residential boiler,chain grate coal fired steam boiler |
||
Product introduction:

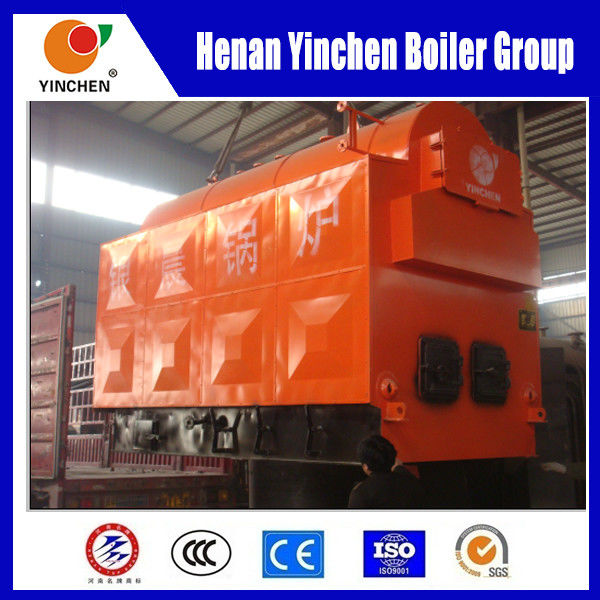

DZH type biomass boiler is a horizontal three-way water and fire tube boiler.The fuel is thrown into the furnace by worker.After the fuel full combustion in the furnace, the high temperature flue gas through the two sides of the furnace arranged on both sides of the water pipe wall composed of airfoil shape smoke flue to the former smoke box, and then through the threaded pipe which inserted in the drum into the back smoke box. The smoke pumped into chimney flue,dust remover,chimney and discharged into the atmosphere finally through the induced draft fan. The boiler operation security and stability, simple operation, low failure rate,etc.
Product Feature:
This product has features of maturity, advancement, stability, reliability and economy.
1. maturity: Our company is one of the earliest manufacturers of coal-fired fast-packaged threaded tube boiler in China. For more than 30 years, the products have been upgraded and matured many times, and thousands of products have been produced.
2. Advancement:Adopts many advanced technologies, such as thread pipe, furnace enhanced combustion etc. control system with automatic adjustment of steam pressure, automatic control of water supply, steam high pressure protection, boiler water shortage protection, high and low water level alarm, low water level interlock protection, Overload protection and power failure automatic protection and other functions.
3. Stability:Boiler running smoothly, low failure rate, no major safety incidents; early boiler has been running up to 20 years.
4. Reliability: the only one boiler manufacturers,which carried out 200,000 times fatigue test on the shell boiler.
5. Economy: high thermal efficiency, fuel savings, good economy; the boiler has been awarded as energy-saving products by the State Economic and Trade Commission and the Henan Provincial Environmental Protection Bureau.
Product technicals:
| Type | Rated Evaporation | Rated Steam Pressure |
Steam Temperature |
Heating Area | Grate Area | Size |
| (t/h) | (Mpa) | (℃) | (㎡) | (㎡) | L×W×H | |
| (m) | ||||||
| DZH1-0.7- AII | 1 | 0.7 | 170 | 36.5 | 1.9 | 3.9×1.85×3.12 |
| DZH1-1.0- AII | 1 | 1 | 184 | 39.4 | 1.9 | 3.9×1.85×3.12 |
| DZH2-0.7- AII | 2 | 0.7 | 171 | 53.6 | 3.74 | 4.5×2.24×3.32 |
| DZH2-1.25- AII | 2 | 1.25 | 194 | 73.6 | 3.74 | 4.5×2.24×3.32 |
| DZH4-1.25- AII | 4 | 1.25 | 194 | 146.03 | 3.93 | 5.3×2.44×3.6 |
Our service:
Consultation service: Experienced technicians guidance is available on the phone, and on the internet.
Installation service:One or more engineers will be dispatched to the installation site to help install the customers' boilers.
Training service: We also provide necessary training about boiler operation and daily maintenance to local workers.
Warm service: Based on customers' request and budget, our experts make efficient, reliable solutions, and we produce strictly following customers' order. Every customer has the chance to visit our workshops before placing the order.
Boiler application:
The boiler can used to many industries,such as Beverage industry,Chemical industry,Food industry,Greenhouse heating,paper industry,Pharmaceutical industry,Rubber industry,Textile industry,Hotel,Rice mill industry,Garment industry,Asphalt industry etc.
