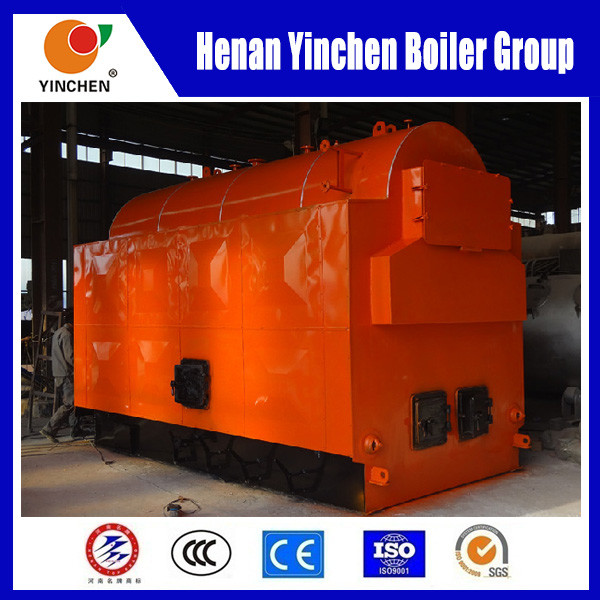

The fuel is coal, biomass, wood steam boiler

The fuel is coal, biomass, wood steam boiler

    • The fuel is coal, biomass, wood steam boiler
    • The fuel is coal, biomass, wood steam boiler
  • The fuel is coal, biomass, wood steam boiler

    Product Details:

    Place of Origin: HENAN
    Brand Name: Yinchen
    Certification: ISO SGS CE
    Model Number: DZH/DZL

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: usd 5000-59800 set
    Packaging Details: 1.Package: Regular package or nut package; 2.Transportation: By land or by sea , it depends on the exporting areas.
    Delivery Time: 1-20 working days
    Payment Terms: L/C, T/T, MoneyGram
    Supply Ability: 5000 set month
    Contact Now
    Detailed Product Description
    Gate Type: Moving Grate Rated Output: 1-4 T/h
    Structure: Water And Fire Tube Thermal Efficiency: 80.33%-81.44%
    Design Fuel: Coal Or Other Biomass Fuel Design Pressure: 0.7 - 1.25 Mpa
    Steam Temperature: 184- 194 ℃ Boiler Type: Hand Fired Boiler

    Industrial High Temperature Coal Fuel 2ton Steam Boiler With CE Certificates



    Apply Fuel: coal, wood/wood pellets, biomass, rice husk pellets, straw pellets and so on.
    Payment Terms: 30% T/T in advance ,70% before factory delivery.
    Lead Time: About 10-15 days after received the down payment.

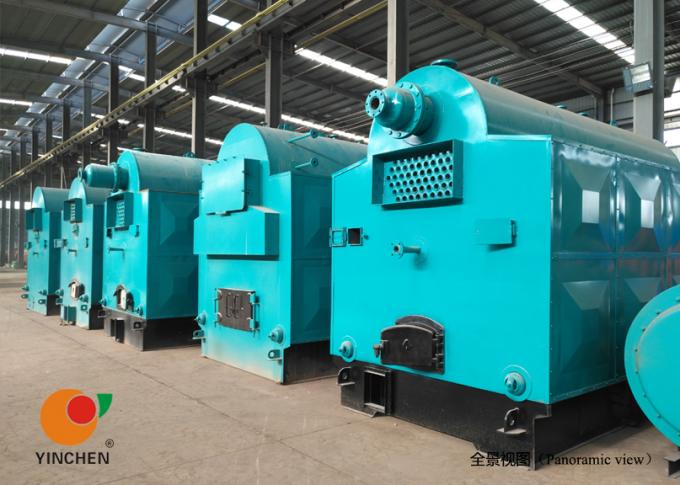

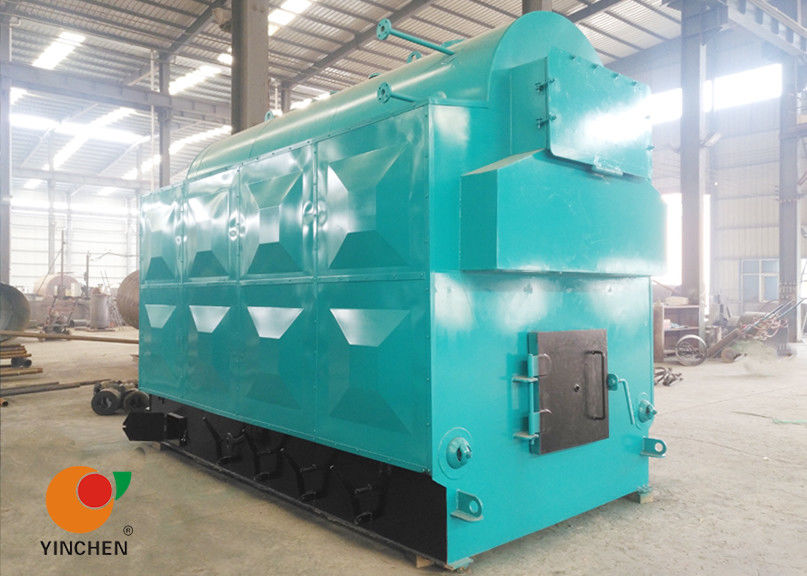

    The fuel is coal, biomass, wood steam boiler

    Boiler Application:

    1. Chemical industry, plastics industry, coatings and automotive industry, leaching industry,
    2. Construction equipment industry, shipbuilding industry.
    3. Garment making, washing and ironing,
    4. Pharmaceutical industry, biological engineering, food industry.
    5. Sauna cosmetology, hotel hotel, physical fitness, school.
    6. Scientific experiment.

    Boiler Feature:

    ♦ Spirally corrugated tube
    Function: (1) Heat transfer enhancement; (2) Improve the suppleness to avoid the tube plate cracking; (3) Clean groove itself.
    ♦ Arched tube plate
    reduce the thermal stress of weld; improve the tube plate suppleness; simplify the structure and save the boiler room space.
    ♦ Complete protection device
    Function: deal with the situation of over pressure, over-temperature, water shortage and flame out.
    ♦ Up-tube layout
    Function: (1) Avoid the bulging on boiler drum; (2) Promote the water cycle (3)clean the sediment in the boiler bottom.
    ♦ Airfoil flue
    Function: Lower the high temperature of tube plate flue gas. And then reduce the thermal load of the boiler bottom.
    ♦ The return water injector
    Function: Increase the reliability of the water circulation and avoid the booster caused by the poor circulation.

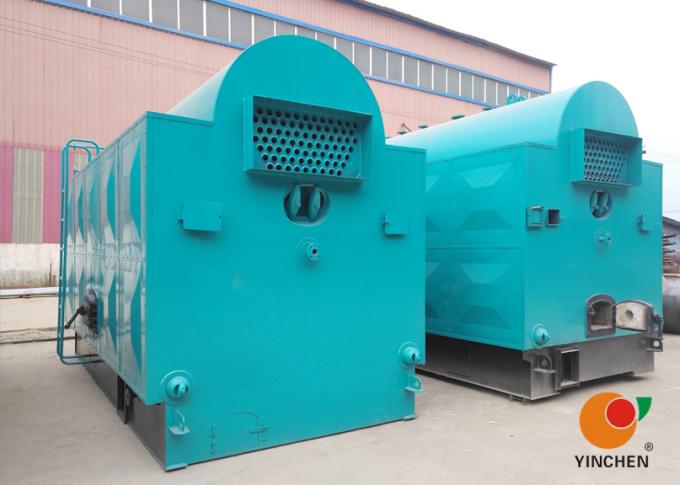

    The fuel is coal, biomass, wood steam boiler


    Moving Grate
    Moving grate boiler could resist the temperature as high as 1200℃, long working life. It has a low coal leakage because of the small gap. High automatic degree, decrease labor cost. Convenient for maintenance, it could be done without boiler shut down.
    Economizer
    Economizer is the boiler tail flue in the boiler feed water heated to the steam pressure under the saturated water heating surface, because it absorbs relatively low temperature flue gas, reducing the smoke exhaust gas temperature, saving energy, improve the efficiency.

    Steam Header
    The steam header is used to distribute the steam generated by the boiler during operation to the pipelines. The sub-cylinder system is a pressure vessel, and its pressure-bearing capacity and capacity should correspond to the supporting boilers.

    Feed Pump
    Feed pump is deaerator tank with a certain temperature of the water supply to the boiler. It is suitable for conveying clean water with temperature lower than 110C or other non-corrosive liquids whose physical and chemical properties are similar to water. It is widely used in boiler feed water and urban water supply in industrial and mining enterprises.


    Boiler Technicals


    DZH Series New-type Fire and Water Tube Steam Boiler
    TypeRated Evaporation
    (t/h)
    Rated Steam Pressure
    (Mpa)
    Steam
    Temperature
    (℃)
    Heating Area
    (M³)
    Grate Area
    (M³)
    Size
    L×W×H
    (m)
    DZH1-0.7- AII10.717036.51.93.9×1.85×3.12
    DZH1-1.0- AII11.018439.41.93.9×1.85×3.12
    DZH2-0.7- AII20.717153.63.744.5×2.24×3.32
    DZH2-1.25- AII21.2519473.63.744.5×2.24×3.32
    DZH4-1.25- AII41.25194146.033.93

    5.3×2.44×3.6







    Company Information


    Henan Yinchen Boiler Group Co.,LTD. was founded at the beginning of 2001, which has a registered captical of 51.66 million. Its headquarters is in the industrial district in Fucaolou town, Taikang county of Henan province. The production factory is adjacent to Yong Deng high-speed,and the 311 national road is also through this district,so it has very convenient transportation conditions.Besides, it is one of the key leading enterprises which firstly get the National Boiler Manufacturing license. With the manufacturing license qualification of "B" class boiler and "D2"class pressure vessel, it is director of China Industrial Boiler Association, member unit of China Welding Association and the enterprise of emphasizing the contract and credit in Henan province. The products have already passed ISO9001-2000 international quality system certification.
     The fuel is coal, biomass, wood steam boiler

    Our service

    1. We will reply your inquiry in 24 hours.
    2. Experienced staffs will answer all your questions in fluent and professional English.
    3. Customized design is available.

    Guarantee: One-year warranty and full-life service for all of our steam boilers;
    A full range of original spare parts are available for all YINCHEN boilers
    Pre-sales Service: Based on customers’ request and budget, our experts make efficient, reliable
    solutions, and we produce strictly following customers’ order. Every customer has the chance to visit
    our workshops before placing the order. And we help to arrange cars, hotels, and the translators for
    every visiting customer.
    After-sales Service: Experienced technicians guidance is available on the phone, and on the internet.
    One or more engineers will be dispatched to the installation site to help install the customers’ boilers.
    We also provide necessary training about boiler operation and daily maintenance to local workers.


    FAQ



    How to choose a boiler type?

    Identify the type of boiler you want(steam boiler or hot water boiler).

    The boiler capacity,pressure,and fuel(oil,gas,biomass,coal),or you can consult us.

    How about the installation?

    Guide installation online or we can provide staff installation by our staffs, but you have to afford the extra cost if If we send professional staff overseas to install it.

    How about your delivery time?

    Generally, it will take 10 to 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

    What about after-sale service?

    We will supply professional after-sale service team as soon as we receiving your problem feedback, we will dispatch our engineers to your country and solve your problems right now.

    And you have other questions and Suggestions, please feel free to ask us, we will do our best to serve you.
