Home ProductsIndustrial Electric Boiler

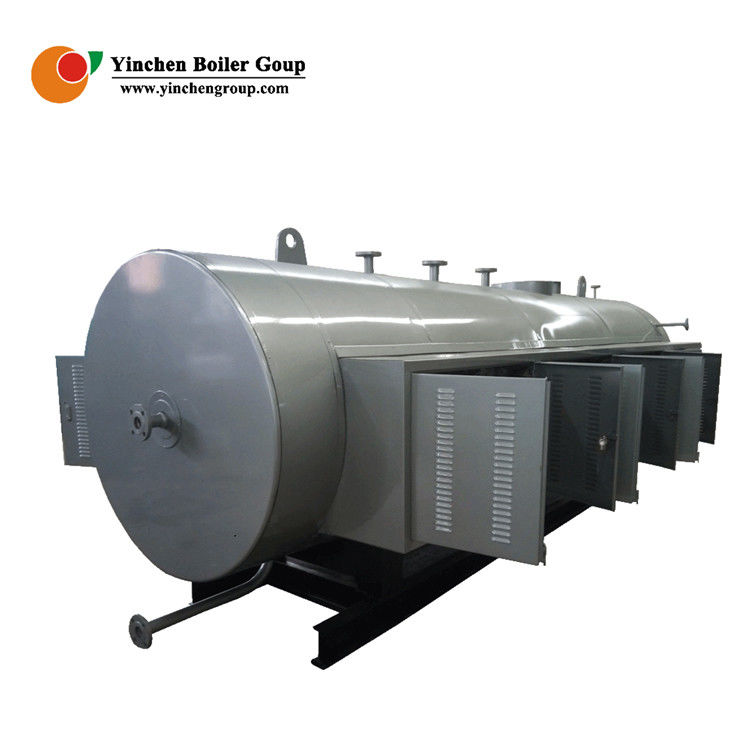

Industrial Electric Steam Generator WDR Series Horizontal Hot Water Boiler

Industrial Electric Steam Generator WDR Series Horizontal Hot Water Boiler

    • Industrial Electric Steam Generator WDR Series Horizontal Hot Water Boiler
    • Industrial Electric Steam Generator WDR Series Horizontal Hot Water Boiler
  • Industrial Electric Steam Generator WDR Series Horizontal Hot Water Boiler

    Product Details:

    Place of Origin: HENAN
    Brand Name: Yinchen
    Certification: ISO SGS CE
    Model Number: LDR/WDR

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: usd 5000-99800 set
    Packaging Details: 1.Package: Regular package or nut package; 2.Transportation: By land or by sea , it depends on the exporting areas.
    Delivery Time: 1-20 working days
    Payment Terms: L/C, T/T, MoneyGram
    Supply Ability: 5000 set month
    Contact Now
    Detailed Product Description
    Product Name: Yinchen Brand LDR/WDR Series 0.1-2 T/h Steam Output Industrial Electric Steam Generator Feed Water Temperature: 20 ℃
    Type: Horizontal Fuel: Electric
    Steam Temperature: 151-170℃ Burning Type: Electric Heating
    Output: Steam
    High Light:

    electrically heated steam boilers

    ,

    high efficiency electric boiler

    yinchen brand LDR/WDR series 0.1-2 t/h steam output industrial electric steam generator

    Type LDR/WDR
    Capacity 0.1-2 t/h
    output Steam



    Introduction



    WDR series horizontal electric hot water boilers adopt the separation method of electric control cabinet of furnace body, which avoids thermal aging of electrical components and affects service life.



    The electric heat pipe is made of high quality products at home and abroad. Its normal service life is about 20,000 hours, and its thermal efficiency is nearly 99%. It runs smoothly and cleanly, meets the requirements of environmental protection, and does not emit NOx (nitrogen oxides) into the atmosphere. The operation adopts PLC control system, free operation button, free indicator lamp, touch screen panel, Chinese and English display, man-machine dialogue, operation authorization, real-time information and automatic page turning.



    Feature

    1. To ensure the continuous production of high quality steam, optimum design is adopted and the design principles of minimum body and maximum steam space are followed.

    2. High-temperature cables can reach 180 degrees Celsius by using high-quality electrothermal and electrical components to ensure the safe operation of the boiler.

    3. Miniature size, elegant matte surface, exquisite style;

    4. Boilers are equipped with protective measures, such as grounding, leakage, pressure protection and water level control.



    Technical paremeters:

    Type

    Rated Output

    (t/h)

    Rated steam

    Pressure(Mpa)

    Steam Temperature

    (℃)

    Outlet

    Diameter

    (mm)

    Water Supply

    Diameter

    (mm)

    Sewage

    Diameter

    (mm)

    Safety Valve Diameter(mm)
    WDR0.1-0.4 0.1 0.4 151 DN32 DN25 DN40 DN40
    WDR0.2-0.4 0.2 DN32
    WDR0.3-0.4 0.3 DN62
    WDR0.4-0.4/0.7 0.4 DN40
    WDR0.5-0.4/0.7 0.5

    0.4

    (0.7)

    151

    (170)

    DN40
    WDR0.6-0.4/0.7 0.6 DN50

    DN40×2



    WDR0.7-0.4/0.7 0.7 DN50
    WDR0.8-0.4/0.7 0.8 DN50
    WDR0.9-0.4/0.7 0.9 DN50
    WDR1-0.4/0.7 1 DN50
    WDR1.4-0.4/0.7 1.4 DN65
    WDR2-0.4/0.7 2 DN80 DN40

    DN50×2




    yinchen brand LDR/WDR series 0.1-2 t/h steam output industrial electric steam generatoryinchen brand LDR/WDR series 0.1-2 t/h steam output industrial electric steam generator

    Packaging Standard Export Package:Regular packing or nude packing.
    Transportation By land or by sea, depended on the exporting area.

    Why Choose Us?


    1. We will reply your inquiry in 7*24 hours.
    2. Experienced staffs will answer all your questions in fluent and professional English.
    3. Customized design is available.

    Guarantee: One-year warranty and full-life service for all of our steam boilers;

    A full range of original spare parts are available for all YINCHEN boilers

    Pre-sales Service: Based on customers’ request and budget, our experts make efficient, reliable

    solutions, and we produce strictly following customers’ order. Every customer has the chance to visit

    our workshops before placing the order. And we help to arrange cars, hotels, and the translators for

    every visiting customer.

    After-sales Service: Experienced technicians guidance is available on the phone, and on the internet.

    One or more engineers will be dispatched to the installation site to help install the customers’ boilers.

    We also provide necessary training about boiler operation and daily maintenance to local workers.
