| Place of Origin: | HENAN |
| Brand Name: | Yinchen |
| Certification: | ISO SGS CE |
| Model Number: | DZL |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | usd 5000-59800 set |
| Packaging Details: | 1.Package: Regular package or nut package; 2.Transportation: By land or by sea , it depends on the exporting areas. |
| Delivery Time: | 1-20 working days |
| Payment Terms: | L/C, T/T, MoneyGram |
| Supply Ability: | 5000 set per year |
| Product Name: | Industrial Hot Water Or Steam Wood Pellet Biomass Boiler | Rated Output: | 1-20 T/h |
|---|---|---|---|
| Structure Mode: | Water And Fire Tube | Thermal Efficiency: | More Than 80% |
| Fuel: | Biomass, Coal, Wood. Etc | Gate Type: | Moving Grate |
| Boiler Material: | Q245R | Certificate: | ISO9001 ASME ISO14001 SGS CE BV |
| Boiler Type: | Steam Boiler And Hot Water Boiler | Colour: | Customized |
| High Light: | wood chip steam boiler,chain grate coal fired steam boiler |
||

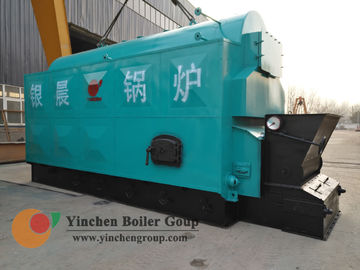

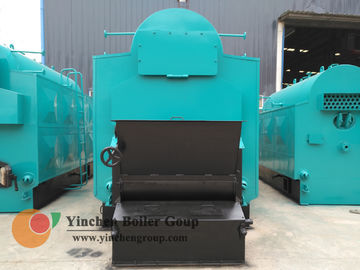

DZl series coal or wood pellet biomass fired boiler, the capacity scope is 1T/H-20T/H.
1. Reasonable heat surface and burning device, heat efficiency is 4%~5% higher than national standard.
2. Reasonable flue speed design, heating surface without scattered ash and noabration. Under the condition of no sootblowing, the boilers can work full load, high efficiently and safely in long term.
3. The big and tall boiler furnace can be easily designed according to the different fuel to improve the burning rate of fuel and remove black smoke.
4. All single return design and injected circulation design for the hot water boilers the medium speed in return of heate sureface is higher than national standard.
5. Adopt big and high strength grate, add rolling device for big grate which improve the boilers' safety and lessen the leaked coal and adjust burning conveniently.
6. Scoot idiomatically separated at the exit of boiler furnace which can reduce dust content and lessen abrasion of back heat surface.
7. Closed scoot cleaning avoid the second pullution and save time and labor.
.
8. Big water volume benefits for power-off protection,high ability suitable for load waving.
Parameters of biomass steam boiler
| Type | Rated Evaporation | Rated Steam Pressure | Feed Water Temperature | SteamTemperature | Grate Area | Exhaust gas temperature | Thermal efficiency |
Maximum Size |
| DZL1-1.0-AII | 1 | 1 | 20 | 184 | 1.9 | 157.3 | 80.33 | 5488×2000×2832 |
| DZL2-1.25-AII | 2 | 1.25 | 20 | 194 | 3.4 | 163.1 | 80.54 | 5694×2550×3364 |
| DZL4-1.25- AII | 4 | 1.25 | 20 | 194 | 5.18 | 169 | 80.28 | 6470×2820×3668 |
| DZL6-1.25- AII | 6 | 1.25 | 20 | 194 | 7.55 | 166.3 | 80.94 | 8244×2951×3550 |
| DZL10-1.25-AII | 10 | 1.25 | 105 | 194 | 12 | 151.2 | 80.91 | 7700×3200×3500 |
| DZL15-1.25- AII | 15 | 1.6 | 105 | 194 | 18 | 161.6 | 81.5 | 7650×3350×3500 |
| DZL20-1.6- AII | 20 | 1.6 | 105 | 206 | 22.85 | 150.6 | 81.44 | 7665×3800×3565 |
Company introduce
Henan Yinchen Boiler Group Co.,LTD. was founded at the beginning of 2001, which has a registered captical of 51.66 million. Its headquarters is in the industrial district in Fucaolou town, Taikang county of Henan province. The production factory is adjacent to Yong Deng high-speed,and the 311 national road is also through this district,so it has very convenient transportation conditions.Besides, it is one of the key leading enterprises which firstly get the National Boiler Manufacturing license. With the manufacturing license qualification of "B" class boiler and "D2"class pressure vessel, it is director of China Industrial Boiler Association, member unit of China Welding Association and the enterprise of emphasizing the contract and credit in Henan province. The products have already passed ISO9001-2000 international quality system certification.
Our service
1. We will reply your inquiry in 24 hours.
2. Experienced staffs will answer all your questions in fluent and professional English.
3. Customized design is available.
Guarantee: One-year warranty and full-life service for all of our steam boilers;
A full range of original spare parts are available for all YINCHEN boilers
Pre-sales Service: Based on customers’ request and budget, our experts make efficient, reliable
solutions, and we produce strictly following customers’ order. Every customer has the chance to visit
our workshops before placing the order. And we help to arrange cars, hotels, and the translators for
every visiting customer.
After-sales Service: Experienced technicians guidance is available on the phone, and on the internet.
One or more engineers will be dispatched to the installation site to help install the customers’ boilers.
We also provide necessary training about boiler operation and daily maintenance to local workers.
1. What can you get from us before quotation?
After confirming all the details about your requirement, we will provide you with several sets of related project pictures we have done before. Once you are satisfied with our strength and our products, lets continue.
2. Below are the details need your confirmation before quotation.
2-1 What type boiler you need, steam boiler, thermal oil boiler or hot water boiler?
2-2 What is the fuel type for you boiler, biomass(coal, shell, pellet etc.), gas or oil?
2-3 What is the requirement for oil/steam temperature and pressure?
2-4What is the evaporation capacity of boiler required?
3. How long can we get the reply with detailed information for our project?
For single boiler, usually you can get the detailed offer within 1 day after details confirmed; For whole set project; the time takes longer and usually 2-3 days for tentative plan and process flow drawing.
4. What is your advantages for the whole project?
We have been in the boiler equipment fields for many years and obtain a good reputation with the up/down partner. So we have much richer resource in different fields like the burn system PIC control instrument, raw material quality selecting shipping installation etc. We are comprehensive company with experiences for different fields.
5. What is warranty for your equipment and whole set of project?
For boiler body, we provide you with 12 months quality warranty.for all the parts of our equipment by repairing or replacing, damage caused by human excepted. For whole project, our engineer will stay in your site for equipment installation, debugging and training till you get standard products from the equipment. If necessary, we will also help you find an engineer to work for you for 1 or 2 year for your plant management.
Before the Quotation Please Confirm the following parameters first, then we can recommend right boiler model for you with good price.
