| Place of Origin: | HENAN |
| Brand Name: | Yinchen |
| Certification: | ISO SGS CE |
| Model Number: | SZL |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | usd 5000-59800 set |
| Packaging Details: | 1.Package: Regular package or nut package; 2.Transportation: By land or by sea , it depends on the exporting areas. |
| Delivery Time: | 1-20 working days |
| Payment Terms: | L/C, T/T, MoneyGram |
| Supply Ability: | 5000 set month |

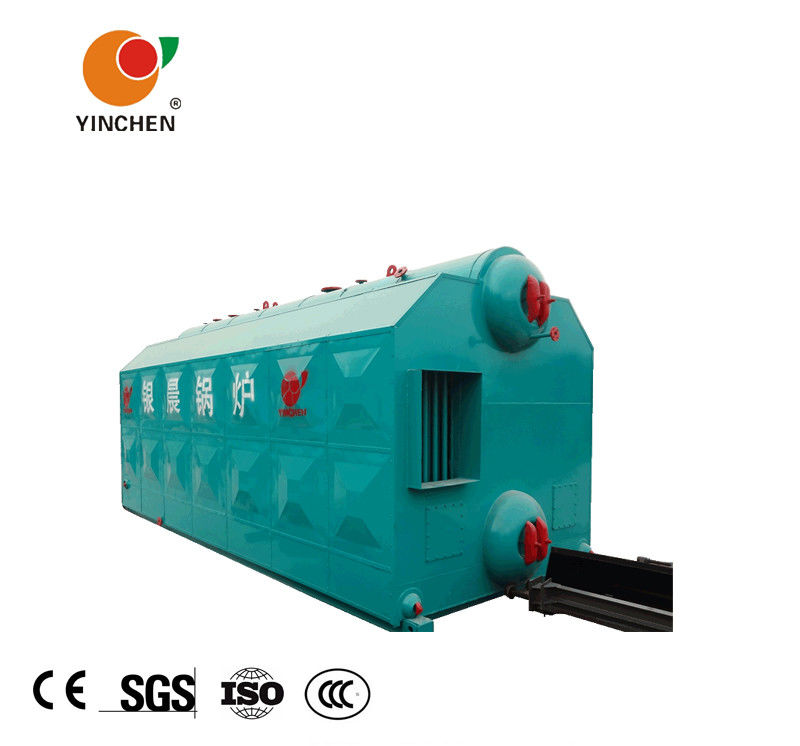

| Product Name: | Yinchen Brand Factory Price Chain Grate Industrial Horizontal Coal Fired Steam Output Biomass Boiler | Usage: | Textile Industry, Pharmaceutical Industry, Administrative Institution, And So On. |
|---|---|---|---|
| Structure Mode: | Water Tube | Type: | Horizontal |
| Suitable Fuel: | Bituminous Coal | Design Pressure: | 1.25 Mpa |
| Body Water Space: | 5.6- 22 M3 | Steam Temperature: | 194℃ |
| Fuel Consumption: | 640-3085 Kg/h | Rated Output: | 4- 20 T/h |
| Pressure: | Low Pressure | ||
| High Light: | coal fired residential boiler,chain grate coal fired steam boiler |
||
1. Wet back structure
Form a smoke turn-back space, reduce the heat loss, increase heat efficiency.
2. Spirally corrugated tube design
Heat transfer enhancement, increase 1-2times heat transfer efficiency.
3. Large combustion chamber design
Gas burning enhancement, increase ga burning space.
4. Advanced corrugated furnace structure
Increase the heat transfer area, meet the furnace free expansion after heating.
Parameter of SZL Biomass Boiler
| Type | SZL4-1.25- AII | SZL6-1.25- AII | SZL10-1.25- AII | SZL15-1.25- AII | SZL20-1.25- AII | |
| Rated Evaporation(t/h) | 4 | 6 | 10 | 15 | 20 | |
| Rated Working Pressure(Mpa) | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | |
| Rated Steam Temperature(℃) | 194 | 194 | 194 | 194 | 194 | |
| Feed Water Temperature(℃) | 20 | 60 | 60 | 105 | 105 | |
| Heating Area (m2) |
Boiler Body | 91.5 | 142 | 234.5 | 296 | 395 |
| Economizer | 54 | 130 | 175 | 350 | 300 | |
| Grate Area (m2) | 4.85 | 7.8 | 12 | 17.4 | 21.5 | |
| Boiler Water Capacity(m³) | 5.6 | 7.4 | 13 | 15.5 | 22 | |
| Boiler Thermal Efficiency (%) | >78 | >80 | >80 | >80 | >80 | |
| Suitable Fuel | Bituminous coal | |||||
| Fuel Consumption(Kg/h) | 640 | 945 | 1545 | 2185 | 3085 | |
| Maximum Shipping Size(m) | 5.3×2.7×3.5 | 7.1×2.7×3.5 | 8×3.3×3.5 | 10×3.25×3.5 | 11.2×3.3×3.5 | |
| Post-installing Size(m) | 7.1×2.7×4.7 | 8.1×3.7×6.2 | 9.4×4.1×6.2 | 11×4.8×6.8 |
12.5×4.8×7.8 |
|
Henan Yinchen Boiler Group Co.,LTD. was founded at the beginning of 2001, which has a registered captical of 51.66 million. Its headquarters is in the industrial district in Fucaolou town, Taikang county of Henan province. The production factory is adjacent to Yong Deng high-speed,and the 311 national road is also through this district,so it has very convenient transportation conditions.Besides, it is one of the key leading enterprises which firstly get the National Boiler Manufacturing license. With the manufacturing license qualification of "B" class boiler and "D2"class pressure vessel, it is director of China Industrial Boiler Association, member unit of China Welding Association and the enterprise of emphasizing the contract and credit in Henan province. The products have already passed ISO9001-2000 international quality system certification.
FAQ
Q1. What is your patment term?
A1: Usually it would be 30% deposit payment, 70% balance before delivery. We accept T/T, L/C and other payment way.
Q2. Are your company is a trading company or a factory?
A2: We are a 20 years old industrial boiler factory, specializing in OIL and GAS and Coal fired steam boiler. Now we are one of leading industrial boiler manufacturers in China.
Q3: What is the warranty for boilers?
A3: Our company promises all the accessories can be changed for new ones because of quality problems within 3 years,and the boiler host has Lifetime Warranty.
Q4: Can we get installation and commissioning service?
A4: Yes, our engineers are available for your need, but the relative cost needs to be paid.
Q5: What about the delivery?
A5: Usually it will take about 35-45 days for pressured boilers, and 25-30 days for non-pressured boilers. Double confirmation shall be necessary before ordering.
Q6: Where is your company or your factory?
A6: Our factory is located in Taikang County Industry Cluster, Henan Province, China.
Q7: What’s your MOQ?
A7: Only 1 set, if you have more than that, you will get a more favorable price.
Q8: Can we visit your factory?
A8: Yes, welcome for your coming at any time. If you need, we can pick you up when you get to our province.
Before the Quotation Please Confirm the following parameters first, then we can recommend right boiler model for you with good price.
