| Place of Origin: | China |
| Brand Name: | Yinchen |
| Certification: | CCC CE ISO SGS |
| Model Number: | WNS |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 3000-8000USD |
| Packaging Details: | Regular package:Boiler body naked package,Accessory in wooden box. |
| Delivery Time: | 10-15 work days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 200 steam capacity per month |
| Name: | Gas Oil Steam Boiler | Material: | Boiler Special Steel |
|---|---|---|---|
| Struture: | Fire Tube | Output: | Steam |
| Capacity: | 1-20t/h | Steam Pressure: | 0.01Mpa--2.5Mpa |
| Type: | Natural Circulation | ||
| High Light: | propane fired steam boiler,3 pass fire tube boiler |
||

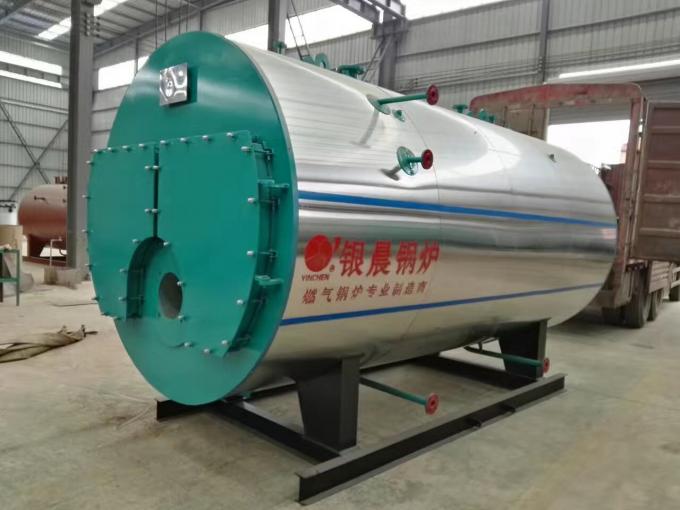

Product introduction:
WNS series oil/gas fired steam boiler belong to horizontal internal combustion three-return full wet back boiler, boiler radiation heating surface is whole corrugated furnace. Convection heating surface adopts screw smoke tube, big heating area, boiler sufficient steam output, thermal efficiency can reach more than 92%.
Boiler combustion chamber design is reasonable,fully adapted to city gas, natural gas, light diesel oil, heavy oil and other kinds of fuels.
Fuel combustion by micro-positive pressure in the furnace. Combustion completely, Exhaust gas pollution emission low. Boiler’s smoke blackness, soot blackness, concentration, noise and other technical index are all better than National Standard in same area.
The control system adopts mechatronics Mechanical-electrical intergration control equipment and programmable logic controller(PLC) joint control mode, and supporting Italy Riello/Baltur, Finland Olin, Germany Weishaupt etc from International famous brand burner.
Structure Feature:

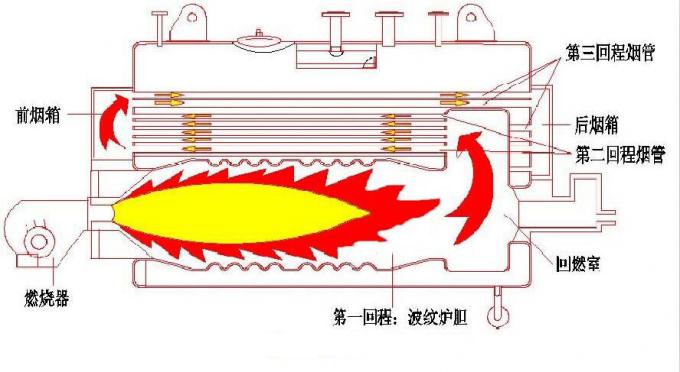

1.Three pass structure
The first return:boiler fuel micro-positive buring in the furnace.
The second return:the flame and high temperature smoke through reversal chamber into short smoke pipe.
The third return:smoke through front smoke box into long smoke pipe.after the convection heat transfer discharge into atmosphere.
2.Wet back structure:
Adopt all wet back structure, the high temperature smoke are surrounded by water, can effectively use heating surface, and can avoid dry back structure to make back smoke box scoured by high temperature smoke result in easily damaged.
Product parameter:
| Type | WNS0.5-1.0-Y(Q) | WNS1-1.0-Y(Q) | WNS2-1.0-Y(Q) | WNS3-1.25-Y(Q) | WNS4-1.25-Y(Q) | WNS6-1.25-Y(Q) | WNS8-1.25-Y(Q) | WNS10-1.25-Y(Q) |
|
Rated Output (t/h) |
0.5 | 1 | 2 | 3 | 4 | 6 | 8 | 10 |
|
Rated Steam Pressure (Mpa) |
1.0 | 1.0 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 |
|
Steam Temperature (℃) |
184 | 184 | 194 | 194 | 194 | 198 | 194 | 194 |
|
Thermal Efficiency (%) |
92.2 | 92.4 | 92.5 | 92.5 | 92.8 | 93.2 | 93.5 | 93.8 |
|
Power Consumption (Kw) |
2.96 (2.96) |
4.4/8.9 (3.7) |
7/20.2 (7) |
9.5/22.7 (10.5) |
13/26.2 (13.5) |
23/45.4 (20.5) |
24/37.5 (24) |
39.5/52 (39.5) |
| Suitable Fuel | Light Oil/ Heavy oil, Natural gas/ Town gas, Coke oven gas | |||||||
| Power Supply(AC) | 380V-410V 50Hz | |||||||

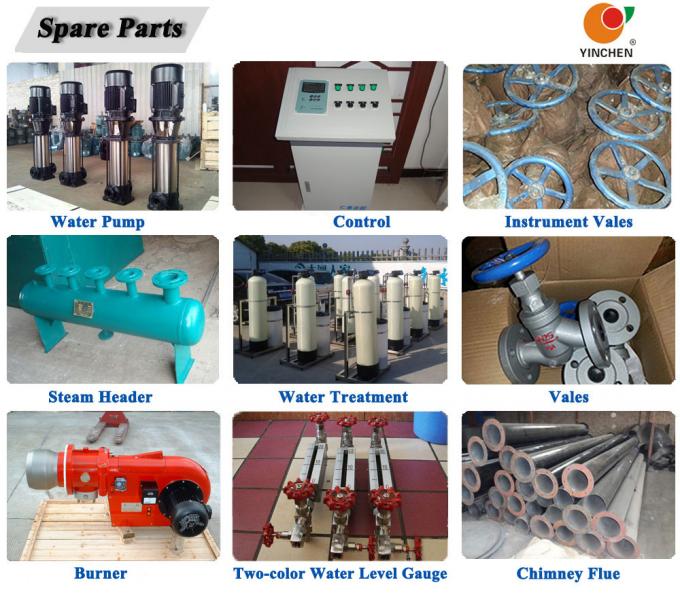

Boiler standard configuration:
Boiler body►Valves and gauges►Water treatment►Feed water pump►Electric control cabinet►Burner►Steam header►Economizer►Chimney&Chimney flue
If you have other requirements for configuration,please tell us timely,we can give you accurate price as per your requirement.
