High Efficiency Oil Fired Condensing Boilers Fully Automatic Control 0.5t/H-20t/H

High Efficiency Oil Fired Condensing Boilers Fully Automatic Control 0.5t/H-20t/H

    • High Efficiency Oil Fired Condensing Boilers Fully Automatic Control 0.5t/H-20t/H
    • High Efficiency Oil Fired Condensing Boilers Fully Automatic Control 0.5t/H-20t/H
  • High Efficiency Oil Fired Condensing Boilers Fully Automatic Control 0.5t/H-20t/H

    Product Details:

    Place of Origin: China
    Brand Name: Yinchen
    Certification: ISO SGS CE
    Model Number: WNS

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: usd 5000-56800 set
    Packaging Details: 1.Package: Regular package or nut package; 2.Transportation: By land or by sea , it depends on the exporting areas.
    Delivery Time: 1-20 working days
    Payment Terms: L/C, T/T, MoneyGram
    Supply Ability: 5000 set per year
    Contact Now
    Detailed Product Description
    Product Name: Oil Gas Fired Condensing Industrial Steam Boiler Manufacturer Capacity: 0.5t/h--20t/h
    Rated Temperature: 170-204 ℃ Feed Water Temperature: 20℃ Or 105℃
    Colour: Customized Material: Boiler Special Steel Plate
    Design Fuel: Gas Or Oil
    High Light:

    diesel fired hot water boiler

    ,

    low pressure hot water boiler

    High Efficiency Oil Gas Fired Condensing Industrial Steam Boiler Manufacturer



    Product introduction

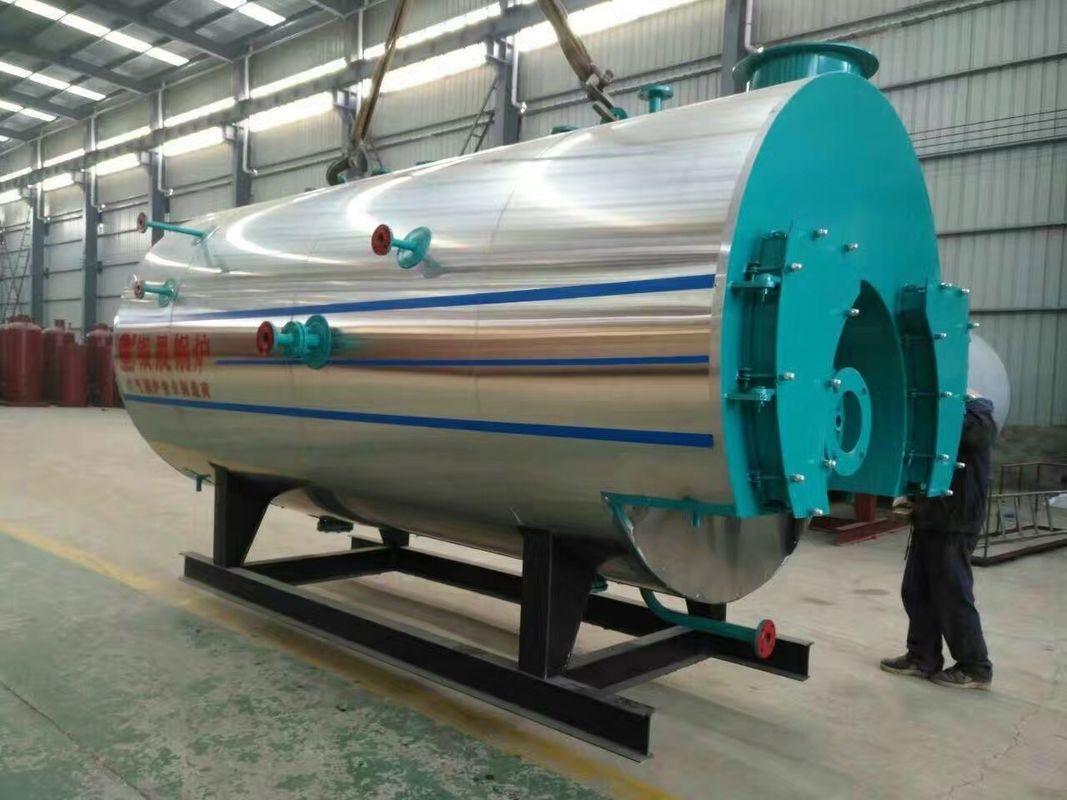

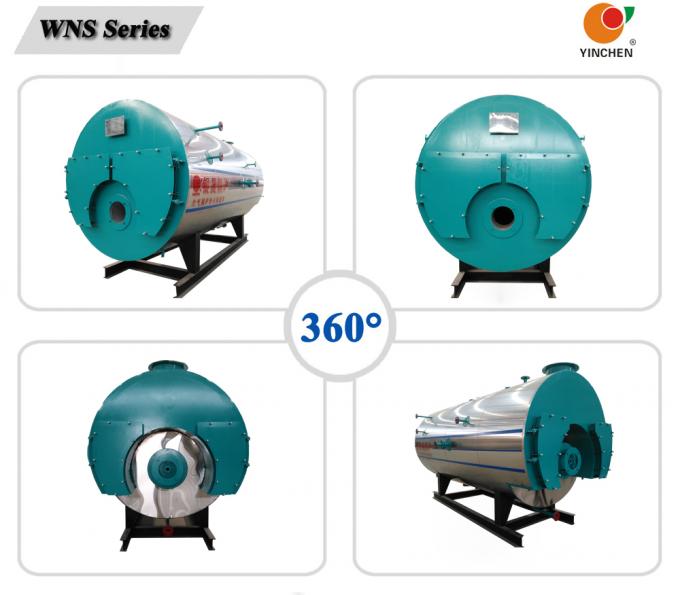

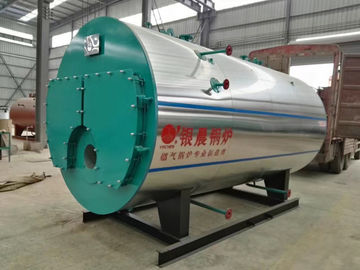

    WNS series oil fired condensing boilers is three return fire tube steam boiler.It equipped with good performance burner and advanced techniques.The burning control,water feed,programs run,etc,is full automatic.This fantasy boiler is safe and reliable,and also has the advantage of compact structure,simple operation,easy installation,high efficiency,less pollution and noise,etc.


    Product Features
    • 1. Patented technology: 100% completely butt welding, mini stress and reliable quality.
    • 2. Large diameter corrugated furnace: Combustion chamber is composed by largediameter full corrugation furnace, big combustion space.
    • 3. High steam quality: Large steam space volume and enough height of the net distance between steam water interface and steam outlet.
    • 4. Advanced automatic control: Boiler controller use Siemens/Delixi electrical element.
    • 5. Multifunction safety explosion proof equipment: Boiler rear panel is equipped with explosion proof equipment which connected with furnace.

    Production process



    NC blanking----Edge preparation---Rolling---Drilling and reaming---Assembly---Welding--Non-destructive test---Hydrostatic test---Packaging

    Product technicals



    Type WNS0.5-1.0-Y(Q) WNS1-1.0-Y(Q) WNS2-1.0-Y(Q) WNS3-1.25-Y(Q) WNS4-1.25-Y(Q) WNS6-1.25-Y(Q) WNS8-1.25-Y(Q) WNS10-1.25-Y(Q)

    Rated Output

    (t/h)

    0.5 1 2 3 4 6 8 10

    Rated Steam Pressure

    (Mpa)

    1.0 1.0 1.25 1.25 1.25 1.25 1.25 1.25

    Steam Temperature

    (℃)

    184 184 194 194 194 198 194 194

    Thermal Efficiency

    (%)

    92.2 92.4 92.5 92.5 92.8 93.2 93.5 93.8

    Power Consumption

    (Kw)

    2.96

    (2.96)

    4.4/8.9

    (3.7)

    7/20.2

    (7)

    9.5/22.7

    (10.5)

    13/26.2

    (13.5)

    23/45.4

    (20.5)

    24/37.5

    (24)

    39.5/52

    (39.5)

    Suitable Fuel Light Oil/ Heavy oil, Natural gas/ Town gas, Coke oven gas
    Power Supply(AC) 380V 50Hz

    Why Choose Us?

    1. We will reply your inquiry in 7*24 hours.
    2. Experienced staffs will answer all your questions in fluent and professional English.
    3. Customized design is available.

    Guarantee: One-year warranty and full-life service for all of our steam boilers;

    A full range of original spare parts are available for all YINCHEN boilers

    Pre-sales Service: Based on customers’ request and budget, our experts make efficient, reliable

    solutions, and we produce strictly following customers’ order. Every customer has the chance to visit

    our workshops before placing the order. And we help to arrange cars, hotels, and the translators for

    every visiting customer.

    After-sales Service: Experienced technicians guidance is available on the phone, and on the internet.

    One or more engineers will be dispatched to the installation site to help install the customers’ boilers.

    We also provide necessary training about boiler operation and daily maintenance to local workers.


    Shipping

    1. When transport, the boiler body and large auxiliary equipments (platform, chimney, economizer, etc ) are nude packed or tied up.
    2. the smaller auxiliary equipments are encased by using the strong intensity wooden or plywood box.
    3. The products could be transported by ship and train, customers could designate the ports.
    4. If necessary, the small auxiliaries could be transported by airplane.

    FAQ

    • QWhat is your patment term ?
    • AUsually it would be 30% deposit payment, 70% balance before delivery.  T/T, L/C and other way.
    • QAre your company is a trading company or a factory?
    • AWe are a 20 years old industrial boiler factory, specializing in OIL and GAS and Coal fired steam boiler.
    • QWhat is the warranty for boilers?
    • AOur company promises all the accessories can be changed for new ones because of quality problems within 3 years, and the boiler host has Lifetime Warranty.
    •
    • QCan we get installation and commissioning service ?
    • AYes, our engineers are available for your need, but the relative cost needs to be paid.
    • QWhat about the delivery ?
    • AUsually it will take about 35-45 days for pressured boilers, and 25-30 days for non-pressured boilers. Double confirmation shall be necessary before ordering.
    •
    • QWhere is your company or your factory?
    • AOur factory is located in Taikang County Industry Cluster, Henan Province, China.
    • QWhat’s your MOQ?
    • AOnly 1 set, if you have more than that, you will get a more favorable price.
    • QCan we visit your factory ?
    • AOYes, welcome for your coming at any time. If you need, we can pick you up when you get to our province.
