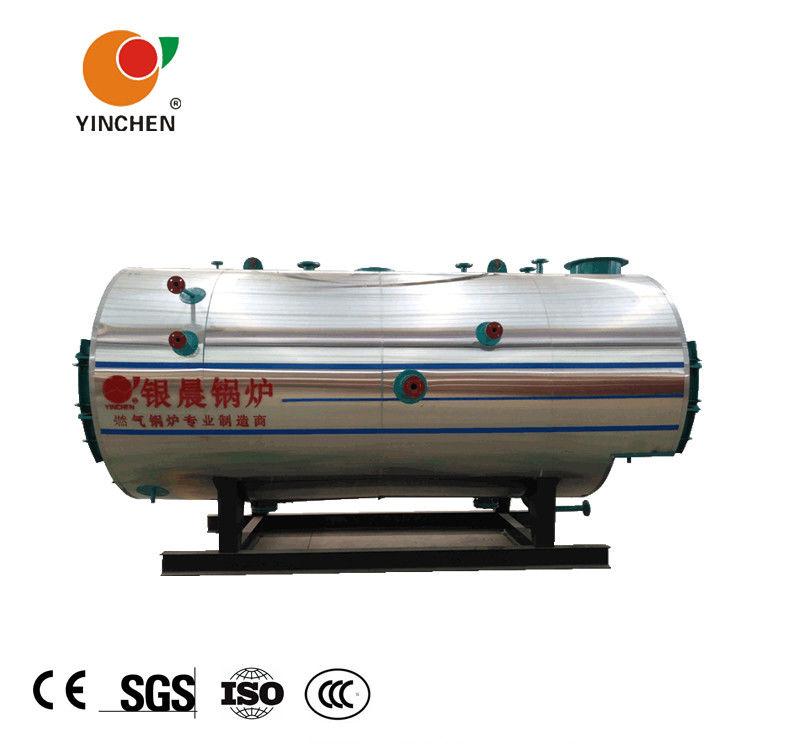

Fuel Oil Fired Steam Boiler Wet Back Inner Combustion Quick Steam 1T-10T/H

Fuel Oil Fired Steam Boiler Wet Back Inner Combustion Quick Steam 1T-10T/H

    • Fuel Oil Fired Steam Boiler Wet Back Inner Combustion Quick Steam 1T-10T/H
    • Fuel Oil Fired Steam Boiler Wet Back Inner Combustion Quick Steam 1T-10T/H
  • Fuel Oil Fired Steam Boiler Wet Back Inner Combustion Quick Steam 1T-10T/H

    Product Details:

    Place of Origin: HENAN
    Brand Name: Yinchen
    Certification: ISO SGS CE
    Model Number: WNS

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: usd 5000-59800 set
    Packaging Details: 1.Package: Regular package or nut package; 2.Transportation: By land or by sea , it depends on the exporting areas.
    Delivery Time: 1-20 working days
    Payment Terms: L/C, T/T, MoneyGram
    Supply Ability: 5000 set month
    Contact Now
    Detailed Product Description
    Output: Steam Weight: 5~50ton
    After-sales Service: Overseas Third-party Support Available Guarantee: One-year Warranty And Full-life Service For All Of Our Steam Boilers
    Fuel: Oil/ Gas Rated Steam Temperature: 170/184/194/204 C
    Thermal Efficiency: >94% Application: Chemical/Medical/Food/Textile Industry
    High Light:

    natural gas hot water boiler

    ,

    high efficiency gas steam boiler

    Wet Back Inner Combustion Quick Steam 1T-10T/H Horizontal Fuel Oil Fired Steam Boiler


    WNS series horizontal oil-fired and gas-fired steam boilers adopt internal combustion three-way full wet-back type, which reduces operation cost, has stable output, simple automatic control operation and convenient maintenance.

    What is the Details of Boiler?

    Type

    WNS0.5-1.0-Y(Q)

    WNS1-1.0-Y(Q)

    WNS2-1.0-Y(Q)

    WNS3-1.25-Y(Q)

    WNS4-1.25-Y(Q)

    WNS5-1.25-Y(Q)

    WNS6-1.25-Y(Q)

    WNS8-1.25-Y(Q)

    WNS10-1.25-Y(Q)

    WNS10-1.6-Y(Q)

    SZS20-2.5-450 Y(Q)

    Rated Output
    (t/h)

    0.5

    1

    2

    3

    4

    5

    6

    8

    10

    10

    20

    Rated Steam Pressure
    (Mpa)

    1.0

    1.0

    1.25

    1.25

    1.25

    1.25

    1.25

    1.25

    1.25

    1.6

    2.5

    Steam Temperature
    (℃)

    184

    184

    194

    194

    194

    194

    198

    194

    194

    204

    450

    Thermal Efficiency
    (%)

    92.2

    92.4

    92.5

    92.5

    92.8

    92.8

    93.2

    93.5

    93.8

    94.2

    94.5

    Rated Oil/Gas Consumption
    (Kg/h)(Nm³/h)

    30.5
    38

    61
    76

    122
    151

    185
    230

    243
    300

    306
    379

    362
    400

    485
    598

    610
    755

    611
    756

    1221
    1510

    Power Consumption
    (Kw)

    2.96
    (2.96)

    4.4/8.9
    (3.7)

    7/20.2
    (7)

    9.5/22.7
    (10.5)

    13/26.2
    (13.5)

    14.5/28
    (15)

    23/45.4
    (20.5)

    24/37.5
    (24)

    39.5/52
    (39.5)

    39.5/52
    (39.5)

    58/65
    (58)

    Suitable Fuel

    Light/ Heavy oil, Natural gas/ Town gas, Coke oven gas

    Power Supply(AC)

    380V 50Hz

    Maximum Shipping Size
    L×H×W (m)

    3.1×

    1.9×1.9

    4.35×

    2.5×2.33

    4.17×

    2.1×2.96

    4.48×

    2.38×2.96

    4.9×

    2.9×3.1

    5.3×

    2.4×3.27

    6.14×

    2.4×3.27

    6.01×

    2.9×3.37

    6.86×

    2.9×3.27

    6.86×

    2.9×3.37

    10.8×

    3.1×3.6

    Type of Burning

    Pressure Atomization/ Pressurized Combustion

    Adjustment Methods

    Automatic



    Product Pictures

    1. Safety

    2. Efficiency

    3. Energy Saving

    4. Environmental Protection


    PACKING AND SHIPPING

    1 . Nude packaging for boiler mian part and wood box packaging for boiler accessories.

    2 . Normally we use container or flat rack container to load it.

    3 . All goods will be reforced after packing into containers.

    4 . We have stable shipping company to cooperate. They will confirm the safty of the goods.

    5 . Shipping way is different according to customer's country. Mostly by sea. Some country by train.

    Packaging Standard Export Package:Regular packing or nude packing.
    Transportation By land or by sea, depended on the exporting area.
    Fuel Oil Fired Steam Boiler Wet Back Inner Combustion Quick Steam 1T-10T/HFuel Oil Fired Steam Boiler Wet Back Inner Combustion Quick Steam 1T-10T/H
    Fuel Oil Fired Steam Boiler Wet Back Inner Combustion Quick Steam 1T-10T/H



    Why Choose Us?


    1. We will reply your inquiry in 7*24 hours.
    2. Experienced staffs will answer all your questions in fluent and professional English.
    3. Customized design is available.

    Guarantee: One-year warranty and full-life service for all of our steam boilers;

    A full range of original spare parts are available for all YINCHEN boilers

    Pre-sales Service: Based on customers’ request and budget, our experts make efficient, reliable

    solutions, and we produce strictly following customers’ order. Every customer has the chance to visit

    our workshops before placing the order. And we help to arrange cars, hotels, and the translators for

    every visiting customer.

    After-sales Service: Experienced technicians guidance is available on the phone, and on the internet.

    One or more engineers will be dispatched to the installation site to help install the customers’ boilers.

    We also provide necessary training about boiler operation and daily maintenance to local workers.
