Diesel Fired Steam Generator Cylindrical Boiler Used In Package Machine Industry

Yinchen Brand Diesel Fired Steam Boiler Used In Package Machine Industry Corrugated Machine

WNS series gas/oil fired steam boiler is horizontal three pass fire tube wet back full automatic steam boiler. It normally suitable for 500kg to 20ton/h capacity, use all kinds of gas and oil fuels,such as natural gas, lpg,lng,cng,city gas,biogas, diesel oil,heavy oil.

♦ Unique structure design of big combustion chamber, 3-stroke all wet-back structure, super radiation heat-exchange and low temperature burning to improve thermal efficiency, reduce NOX emission and protect the environment.

♦ Adoption of thread smoke tube improves heat transmission and thermal efficiency.

♦ Multiple-sealing of boiler front and back smoke box prevent smoke leakage.

♦ Large steam space leads to better steam quality.

♦ Multiple measures of such as water level,steam pressure and smoke-discharging temperature make the boiler safe and reliable.

♦ Efficient thermal protection materials ensurethe lower boiler surface temperature.

♦ Boiler energy-saver of GENTLE company save the fuel cost by 5-15%, Upgrading the boiler into condenser ones.

♦ Multiple-point pollutant discharging makes the heating surface of boiler cleaner.

What is the Details of Boiler?

Type	WNS0.5-1.0-Y(Q)	WNS1-1.0-Y(Q)	WNS2-1.0-Y(Q)			WNS3-1.25-Y(Q)	WNS4-1.25-Y(Q)	WNS5-1.25-Y(Q)	WNS6-1.25-Y(Q)	WNS8-1.25-Y(Q)	WNS10-1.25-Y(Q)	WNS10-1.6-Y(Q)	SZS20-2.5-450 Y(Q)
Rated Output (t/h)	0.5	1	2			3	4	5	6	8	10	10	20
Rated Steam Pressure (Mpa)	1.0	1.0	1.25			1.25	1.25	1.25	1.25	1.25	1.25	1.6	2.5
Steam Temperature (℃)	184	184	194			194	194	194	198	194	194	204	450
Thermal Efficiency (%)	92.2	92.4	92.5			92.5	92.8	92.8	93.2	93.5	93.8	94.2	94.5
Rated Oil/Gas Consumption (Kg/h)(Nm³/h)	30.5 38	61 76	122 151			185 230	243 300	306 379	362 400	485 598	610 755	611 756	1221 1510
Power Consumption (Kw)	2.96 (2.96)	4.4/8.9 (3.7)	7/20.2 (7)			9.5/22.7 (10.5)	13/26.2 (13.5)	14.5/28 (15)	23/45.4 (20.5)	24/37.5 (24)	39.5/52 (39.5)	39.5/52 (39.5)	58/65 (58)
Suitable Fuel	Light/ Heavy oil, Natural gas/ Town gas, Coke oven gas
Power Supply(AC)	380V 50Hz
Type of Burning	Pressure Atomization/ Pressurized Combustion
Adjustment Methods	Automatic

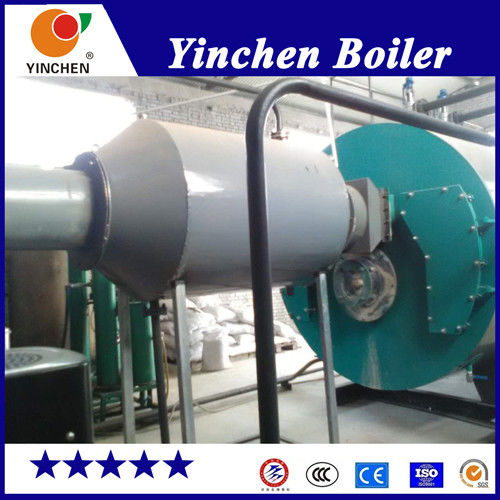

Product Pictures

1. Safety



2. Efficiency



3. Energy Saving



4. Environmental Protection



Why Choose Us?



1. We will reply your inquiry in 7*24 hours.
2. Experienced staffs will answer all your questions in fluent and professional English.
3. Customized design is available.



Guarantee: One-year warranty and full-life service for all of our steam boilers;



A full range of original spare parts are available for all YINCHEN boilers



Pre-sales Service: Based on customers’ request and budget, our experts make efficient, reliable



solutions, and we produce strictly following customers’ order. Every customer has the chance to visit



our workshops before placing the order. And we help to arrange cars, hotels, and the translators for



every visiting customer.



After-sales Service: Experienced technicians guidance is available on the phone, and on the internet.



One or more engineers will be dispatched to the installation site to help install the customers’ boilers.



We also provide necessary training about boiler operation and daily maintenance to local workers.



PACKING AND SHIPPING

Packaging	Standard Export Package:Regular packing or nude packing.
Transportation	By land or by sea, depended on the exporting area.
