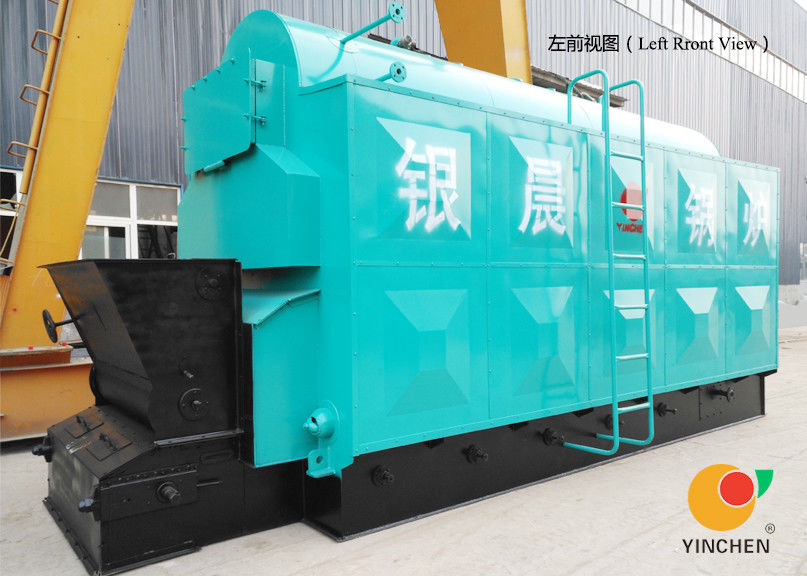

Automatic coal-fired steam boiler with Q345 steel plate

Automatic coal-fired steam boiler with Q345 steel plate

Automatic coal-fired steam boiler with Q345 steel plate

Product Details:

Place of Origin: China
Brand Name: Yinchen
Certification: ISO SGS CE GB
Model Number: DZL

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: usd 5000-98000 set
Packaging Details: 1.Package: Regular package or naked package; 2.Transportation: By land or by sea , it depends on the exporting areas.
Delivery Time: 1-20 working days
Payment Terms: L/C, T/T, MoneyGram
Supply Ability: 5000 set per year
Contact Now
Detailed Product Description
Product Name: Automatic Coal-fired Steam Boiler With Q345 Steel Plate Rated Steam Capacity: 1t/h--20t/h
Structure: Water And Fire Tube Rated Pressure: 1.25 Mpa
Rated Steam Temperature: 194 ℃ Design Fuel: Coal,Biomass
Grate: Chain Grate Colour: Customized
Weight: Depends On Model

Automatic coal-fired steam boiler with Q345 steel plate From Yinchen Boiler Group

Yinchen Boiler Group is a company specializing in the research, design and production of boilers for nearly 43 years. With several researching and producing bases in China, we can provide the powerful technical service and upper quality machinery for the clients all over the world. Company headquarters covers an area of 60000 square meters, construction area of 4000 square meters.


Product introduction

DZL series biomass boiler is a horizontal three-way water fire tube boiler. Arrange the threaded pipe in the drum, on both sides have the water wall tube, front and back arch with a new type of energy-saving furnace arch, the use of light small scale chain grate is more conducive to the combustion of biomass fuels, with a blower, induced draft fan for mechanical ventilation, and equipped with a slag machine to achieve automatic slag.
Automatic coal-fired steam boiler with Q345 steel plate

The fuel from the coal bucket fell to the grate, enter into the furnace for combustion, the flame after the back arch refraction upward through the body both sides burning chamber turn to the front smoke box, and then by the front smoke box to the threaded pipe in inside of the drum, after through the back smoke box into the economizer, and then by the induced draft fan pump the smoke into the atmosphere through the chimney flue.


Product feature

1. By pulling the partial ascension pipe on both sides of the heads into the furnace, and then lead into drum side’s bottom and supplementing with the bottom of the drum to form the roof heating surface, the new furnace structure has successfully solved the bottom of the drum directly by the high temperature flame radiation, to avoid the "drum package" defects.

2. Two wings smoke flue’s design,tom make the smoke flow into front smoke box smoothly and the same tube temperature as before to avoid the temperature stress and produce tube plate cracks.

3. The drum with a single return thread pipe, to strengthen the heat transfer effect, while the threaded pipe with self-cleaning function, to avoid the ash deposits inside the pipe.

4. Boiler front and back arch adopt support the water wall tube as support ‘s overall casting structure, then the formation of permanent arch. The back arch is low and long, the exit section is anti-tilt, the front arch angle 45 °,match the back arch, forming a clear inverted "α" flame, which is conducive to low-grade coal combustion and has good coal adaptability .

5. Grate lateral sealing structure design is advanced and reasonable, avoiding the lateral sealing card grate and the grate both sides uneven wind to cause the defects of burning out the side seal. 4t / h and less then 4t boiler adopts side seal cold angle iron plate structure, above 6t / h boiler adopts contact-type lateral sealing structure.

6. Under the grate have the independent adjustment wind chamber, from both sides inlet air; Using new crank arm screw adjusting structure, so that the air ventilation section ratio reaches 100%, flexible adjustment, ventilation uniform.Push-pull type gate segment soot cleaning device, gate segment adopts heat-resisting cast iron with seal structure, thus effectively preventing secondary combustion deformation and grate air leakage.



Product technicals


TypeRated CapacityRated Steam PressureFeed Water TemperatureSteam Temperature

Grate
Area

Exhaust
gas temperature

Thermal
Efficiency

Maximum size
DZL1-1.0-AII11201841.9157.380.335488×2000×2832
DZL2-1.6- AII21.6202053.4163.180.545694×2550×3364
DZL4-1.6- AII41.6202055.1816980.286470×2820×3668
DZL6-1.6- AII61.6202057.55166.380.948244×2951×3550
DZL10-1.6- AII101.610520512151.280.917700×3200×3500
DZL15-1.6- AII151.610520518161.681.57650×3350×3500
DZL20-1.6- AII201.610520622.85150.681.447665×3800×3565




Why do you choose us?

(1) Strength calculation report with applied materials information;

(2) 100%NDT(non-destructive inspection) report of steel plate, tube and welding rod;

(3) 100% X-ray inspection(welding seam): ensure the quality of entire boiler;

(4) Hydrostatic test ensure the standard working pressure and safety;

(5) Third-party inspection report:By Henan Boiler Inspection Institute;

(6) Passed ISO:9001 and SGS certificate.


Packing and shipping

1. When transport, the boiler body and large auxiliary equipments (platform, chimney, economizer, etc ) are nude packed or tied up.
2. the smaller auxiliary equipments are encased by using the strong intensity wooden or plywood box.
3. The products could be transported by ship and train, customers could designate the ports.
4. If necessary, the small auxiliaries could be transported by air.



FAQ


How to choose a boiler type?


Identify the type of boiler you want(steam boiler or hot water boiler).

The boiler capacity,pressure,and fuel(oil,gas,biomass,coal),or you can consult us.

How about the installation?

Guide installation online or we can provide staff installation by our staffs, but you have to afford the extra cost if If we send professional staff overseas to install it.

How about your delivery time?

Generally, it will take 10 to 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

What about after-sale service?

We will supply professional after-sale service team as soon as we receiving your problem feedback, we will dispatch our engineers to your country and solve your problems right now.

And you have other questions and Suggestions, please feel free to ask us, we will do our best to serve you.



Automatic coal-fired steam boiler with Q345 steel plate

Automatic coal-fired steam boiler with Q345 steel plate

Automatic coal-fired steam boiler with Q345 steel plate
Automatic coal-fired steam boiler with Q345 steel plate
