| Place of Origin: | HENAN |
| Brand Name: | Yinchen |
| Certification: | ISO SGS CE |
| Model Number: | LSS |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | usd 5000-59800 set |
| Packaging Details: | 1.Package: Regular package or nut package; 2.Transportation: By land or by sea , it depends on the exporting areas. |
| Delivery Time: | 1-20 working days |
| Payment Terms: | L/C, T/T, MoneyGram |
| Supply Ability: | 5000 set month |

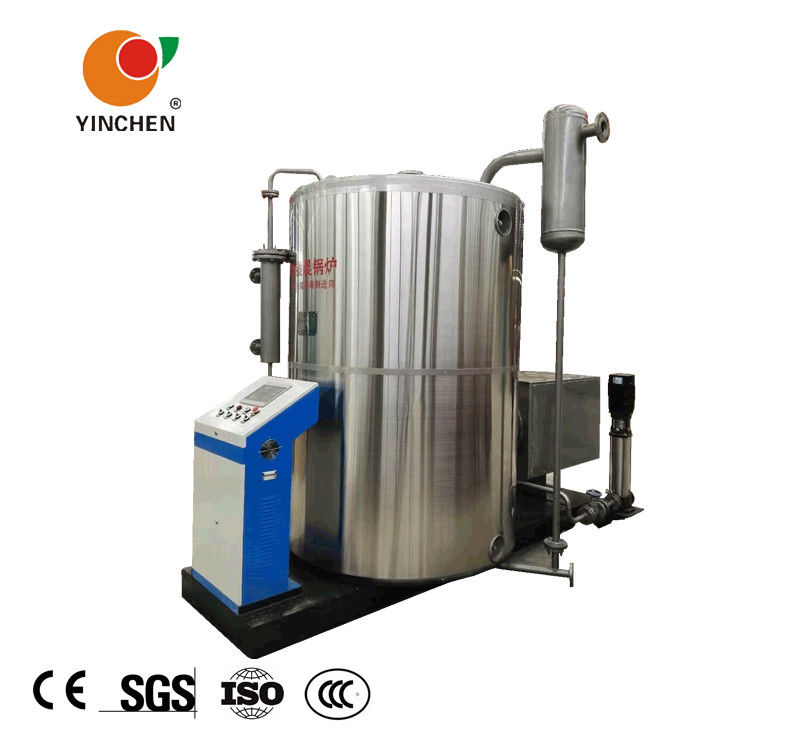

| Product Name: | Factory Direct Sales 500Kg/Hr Verticle Steam Boiler For Industrial Application | Structure Mode: | Water Tube |
|---|---|---|---|
| Type: | Vertical | Feed Water Temperature: | 20 C |
| Design Pressure: | 1.0Mpa, 1.6 Mpa | Output: | Steam |
| Steam Temperature: | 184/ 204 ℃ | Burning Type: | Hi Low-Off |
| Rated Output: | 0.5t, 1t, 2t, 4t | Usage: | Industry |
| High Light: | oil powered boiler,low pressure hot water boiler |
||
| Apply Fuel: Gas & oil fired. |
| Payment Terms: 30% T/T in advance ,70% before factory delivery. |
| Lead Time: About 10-15 days after received the down payment. |
Performance advantage
1. Crossflow struture, advanced level at domestic and international;
2. After 4 to 5 minutes ignition, it can get enough pressured steam;
3. Automatically control combustion, steam pressure and water level; ensure safe and economical operation;
4. Combustiong gas flowing among conduit group at a high speed that assures high quality heat convection and transfer and high effect heat absorption;
5. Quiet operation and stable combustion, compeletely according with environmental protection standard;
6. Perfect boiler body structure ensures high quality heating absorption and high combustion efficiency up to 92%-96%;
7. High technology, high quality,fully automatic CO2 welding;Parts standardization and quality assurance.
Advantages of Boiler
1. Safety
2. Efficiency
3. Energy Saving
4. Environmental Protection
Parameters of Boiler
|
Boiler Type |
LSS0.5 |
LSS1.0 |
LSS2.0 |
LSS4.0 |
||
|
Rated Evaporation(t/h) |
0.5 |
1.0 |
2.0 |
4.0 |
||
|
Rated Steam Pressure(Mpa) |
1.0, 1.6 |
|||||
|
Steam Temperature(℃) |
184, 204 |
|||||
|
Feed Water Temperature(℃) |
20 |
|||||
|
Type of Burning |
Two-section Type |
|||||
|
Thermal Efficiency(%) |
>96.5 |
|||||
|
Suitable Fuel |
Diesel oil, Heavy oil, Natural gas |
|||||
|
Fuel Consumption |
Diesel oil(kg/h) |
29 |
58 |
119 |
238 |
|
|
Heavy oil(kg/h) |
31 |
62 |
125 |
249 |
||
|
Natural gas(Nm³/h) |
36 |
75 |
148 |
296 |
||
|
Main Steam Port |
DN40 |
DN50 |
DN65 |
DN125 |
||
|
Feed Water Inlet |
DN20 |
DN25 |
DN32 |
DN40 |
||
|
Total Electrical Power Rating(Kw) |
3 |
8 |
9 |
15 |
||
|
Chimney Diameter(mm) |
Φ200 |
Φ280 |
Φ430 |
Φ580 |
||
|
Size |
L(mm) |
2100 |
2300 |
2500 |
3000 |
|
|
W(mm) |
1600 |
2000 |
2300 |
3200 |
||
|
H(mm) |
2100 |
3000 |
3100 |
4800 |
||
Henan Yinchen Boiler Group Co.,LTD. was founded at the beginning of 2001, which has a registered captical of 51.66 million. Its headquarters is in the industrial district in Fucaolou town, Taikang county of Henan province. The production factory is adjacent to Yong Deng high-speed,and the 311 national road is also through this district,so it has very convenient transportation conditions.Besides, it is one of the key leading enterprises which firstly get the National Boiler Manufacturing license. With the manufacturing license qualification of "B" class boiler and "D2"class pressure vessel, it is director of China Industrial Boiler Association, member unit of China Welding Association and the enterprise of emphasizing the contract and credit in Henan province. The products have already passed ISO9001-2000 international quality system certification.
Our service
1.We will reply your inquiry in 24 hours.
2.Experienced staffs will answer all your questions in fluent and professional English.
3.Customized design is available.
Q1. What is your patment term?
A1: Usually it would be 30% deposit payment, 70% balance before delivery. We accept T/T, L/C and other payment way.
Q2. Are your company is a trading company or a factory?
A2: We are a 20 years old industrial boiler factory, specializing in OIL and GAS and Coal fired steam boiler. Now we are one of leading industrial boiler manufacturers in China.
Q3: What is the warranty for boilers?
A3: Our company promises all the accessories can be changed for new ones because of quality problems within 3 years,and the boiler host has Lifetime Warranty.
Q4: Can we get installation and commissioning service?
A4: Yes, our engineers are available for your need, but the relative cost needs to be paid.
Q5: What about the delivery?
A5: Usually it will take about 35-45 days for pressured boilers, and 25-30 days for non-pressured boilers. Double confirmation shall be necessary before ordering.
Q6: Where is your company or your factory?
A6: Our factory is located in Taikang County Industry Cluster, Henan Province, China.
Q7: What’s your MOQ?
A7: Only 1 set, if you have more than that, you will get a more favorable price.
Q8: Can we visit your factory?
A8: Yes, welcome for your coming at any time. If you need, we can pick you up when you get to our province.
