| Place of Origin: | HENAN |
| Brand Name: | Yinchen |
| Certification: | ISO SGS CE |
| Model Number: | LSS |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | usd 5000-59800 set |
| Packaging Details: | 1.Package: Regular package or nut package; 2.Transportation: By land or by sea , it depends on the exporting areas. |
| Delivery Time: | 1-20 working days |
| Payment Terms: | L/C, T/T, MoneyGram |
| Supply Ability: | 5000 set month |
| Pressure: | Low Pressure | Usage: | Industry |
|---|---|---|---|
| Structure Mode: | Water Tube | Type: | Vertical |
| Fuel: | Gas, Oil. Etc | Design Pressure: | 1.0Mpa, 1.6 Mpa |
| Output: | Steam | Steam Temperature: | 184/ 204 ℃ |
| Burning Type: | Hi Low-Off | Rated Output: | 0.5t, 1t, 2t, 4t |
| High Light: | natural gas hot water boiler,high efficiency gas steam boiler |
||
| Apply Fuel: Gas & oil fired. |
| Payment Terms: 30% T/T in advance ,70% before factory delivery. |
| Lead Time: About 10-15 days after received the down payment. |
Automatic gas fired high efficiency once-through LSS Type boiler is a new type of high-tech energy saving product. It can produce steam in cold water condition within 3-5 minutes. While the traditional oil/gas fired boiler generate steam will take 30-40 minutes. It means that this product warm-up time is particularly short, every start will save 30 minutes of fuel consumption than traditional oil/gas fired boiler. This product is extremely suitable for intermittent use heat conditions and rapid use heat, and can save energy 15-20% than traditional boiler.
Advantages of Boiler
1. Safety
2. Efficiency
3. Energy Saving
4. Environmental Protection
Parameters of Boiler
|
Boiler Type |
LSS0.5 |
LSS1.0 |
LSS2.0 |
LSS4.0 |
||
|
Rated Evaporation(t/h) |
0.5 |
1.0 |
2.0 |
4.0 |
||
|
Rated Steam Pressure(Mpa) |
1.0, 1.6 |
|||||
|
Steam Temperature(℃) |
184, 204 |
|||||
|
Feed Water Temperature(℃) |
20 |
|||||
|
Type of Burning |
Two-section Type |
|||||
|
Thermal Efficiency(%) |
>96.5 |
|||||
|
Suitable Fuel |
Diesel oil, Heavy oil, Natural gas |
|||||
|
Fuel Consumption |
Diesel oil(kg/h) |
29 |
58 |
119 |
238 |
|
|
Heavy oil(kg/h) |
31 |
62 |
125 |
249 |
||
|
Natural gas(Nm³/h) |
36 |
75 |
148 |
296 |
||
|
Main Steam Port |
DN40 |
DN50 |
DN65 |
DN125 |
||
|
Feed Water Inlet |
DN20 |
DN25 |
DN32 |
DN40 |
||
|
Total Electrical Power Rating(Kw) |
3 |
8 |
9 |
15 |
||
|
Chimney Diameter(mm) |
Φ200 |
Φ280 |
Φ430 |
Φ580 |
||
|
Size |
L(mm) |
2100 |
2300 |
2500 |
3000 |
|
|
W(mm) |
1600 |
2000 |
2300 |
3200 |
||
|
H(mm) |
2100 |
3000 |
3100 |
4800 |
||
Features of Boiler
Adopts vertical arrangement, boiler structure is compact, occupy area is small, and the boiler room requirements are simple.
Pressure boost-up quickly, boiler start time is short, generate steam within 3-5 minutes in normal temperature status. Rapid steam production, warm-up time is short, can effectively reduce operating costs. The traditional structure WNS series oil/gas fired steam boiler takes about 30-40 minutes from normal temperature to produce steam. start once a day, and can save 30 minutes fuel consumption every start. For a long time, this boiler is your best choice.
Easy to installation: Complete boiler assembly, commissioning, fully equipped in the factory. After the boiler installed on site, just need connect water, electricity, oil, gas and blowdown pipeline can be put into operation.
Whole tube plate structure, oiler explosion accident will not happen, excellent safety performance. Especially for hospitals, schools, residence community etc crowded areas, not security risks.
Boiler body is welded by the upper-lower header, straight pipes and flat steel. Filled in the refractory material between the pipe both ends and tube plate welding point. This structure effectively solve the furnace seal, heat affected area overlap, stress concentration and other problems.
With special W-type smoke gas process, flue gas outside the water pipe high-speed flow and cross-flow scrubbing. Convection heat transfer is very strong, high heat transfer coefficient.
Supply water to lower headers, and then distributed to the water pipe, boiler water circulation is fast, water volume relatively small, boiler start and stop quickly. At the same time, designed unique boiler inside and boiler outside two steam-water separation device, to ensure a better steam quality. Coupled with sophisticated water level control alarm, pressure control system, to make the boiler operation safe and reliable.
Adopts light and efficient absorb noise insulation materials: thermal insulation use 50mm aluminum silicate board, light weight, good insulation effect, hot loss is small, appearance use the brushed stainless steel plate, beautiful and generous.
Electric control system adopts intelligent control, reserved the PLC control port, high automaticity. The control system with automatic control combustion, water pump automatic control ,draught fan automatic control, gas fired solenoid valve automatic control,and meanwhile low water level fault, high pressure failure, flame breakdown, pressure fault, air door open fault, air door turn down fault, air door close fault etc security protection. Computer(PLC) also automatically record a variety of date parameter and alarm parameters and other data, through the touch screen for recording, statics, management.
Adopts the whole Chinese LCD controller, dynamic graphical working condition display. automatic control system, simple operation, no need special duty .Full rage of temperature display, more convenient to manage the operation of boiler and the system.

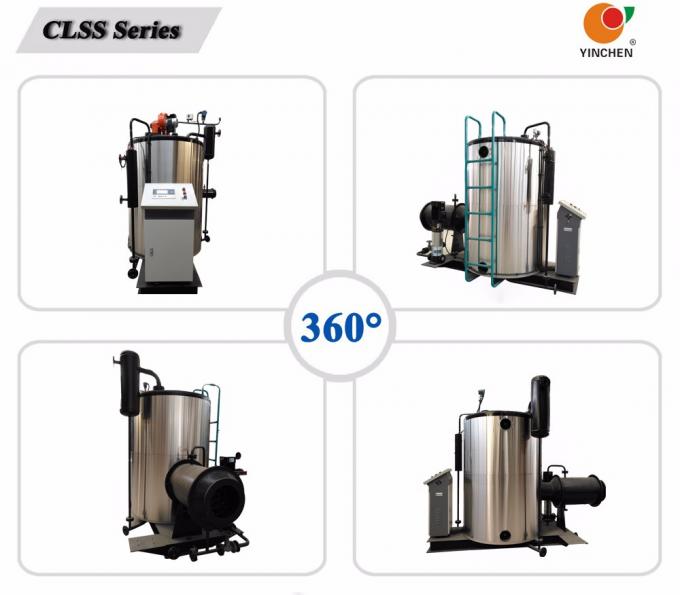

Cina Gas Boiler Details
Henan Yinchen Boiler Group Co.,LTD. was founded at the beginning of 2001, which has a registered captical of 51.66 million. Its headquarters is in the industrial district in Fucaolou town, Taikang county of Henan province. The production factory is adjacent to Yong Deng high-speed,and the 311 national road is also through this district,so it has very convenient transportation conditions.Besides, it is one of the key leading enterprises which firstly get the National Boiler Manufacturing license. With the manufacturing license qualification of "B" class boiler and "D2"class pressure vessel, it is director of China Industrial Boiler Association, member unit of China Welding Association and the enterprise of emphasizing the contract and credit in Henan province. The products have already passed ISO9001-2000 international quality system certification.
Our service
1.We will reply your inquiry in 24 hours.
2.Experienced staffs will answer all your questions in fluent and professional English.
3.Customized design is available.
Q1. What is your patment term?
A1: Usually it would be 30% deposit payment, 70% balance before delivery. We accept T/T, L/C and other payment way.
Q2. Are your company is a trading company or a factory?
A2: We are a 20 years old industrial boiler factory, specializing in OIL and GAS and Coal fired steam boiler. Now we are one of leading industrial boiler manufacturers in China.
Q3: What is the warranty for boilers?
A3: Our company promises all the accessories can be changed for new ones because of quality problems within 3 years,and the boiler host has Lifetime Warranty.
Q4: Can we get installation and commissioning service?
A4: Yes, our engineers are available for your need, but the relative cost needs to be paid.
Q5: What about the delivery?
A5: Usually it will take about 35-45 days for pressured boilers, and 25-30 days for non-pressured boilers. Double confirmation shall be necessary before ordering.
Q6: Where is your company or your factory?
A6: Our factory is located in Taikang County Industry Cluster, Henan Province, China.
Q7: What’s your MOQ?
A7: Only 1 set, if you have more than that, you will get a more favorable price.
Q8: Can we visit your factory?
A8: Yes, welcome for your coming at any time. If you need, we can pick you up when you get to our province.
Before the Quotation Please Confirm the following parameters first, then we can recommend right boiler model for you with good price.
