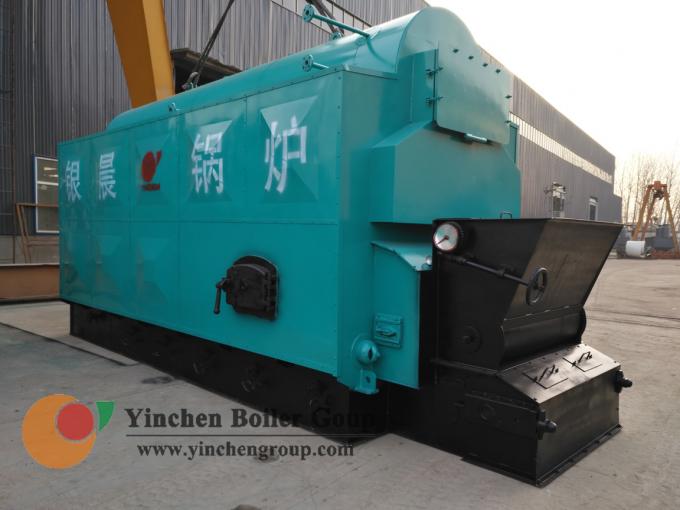

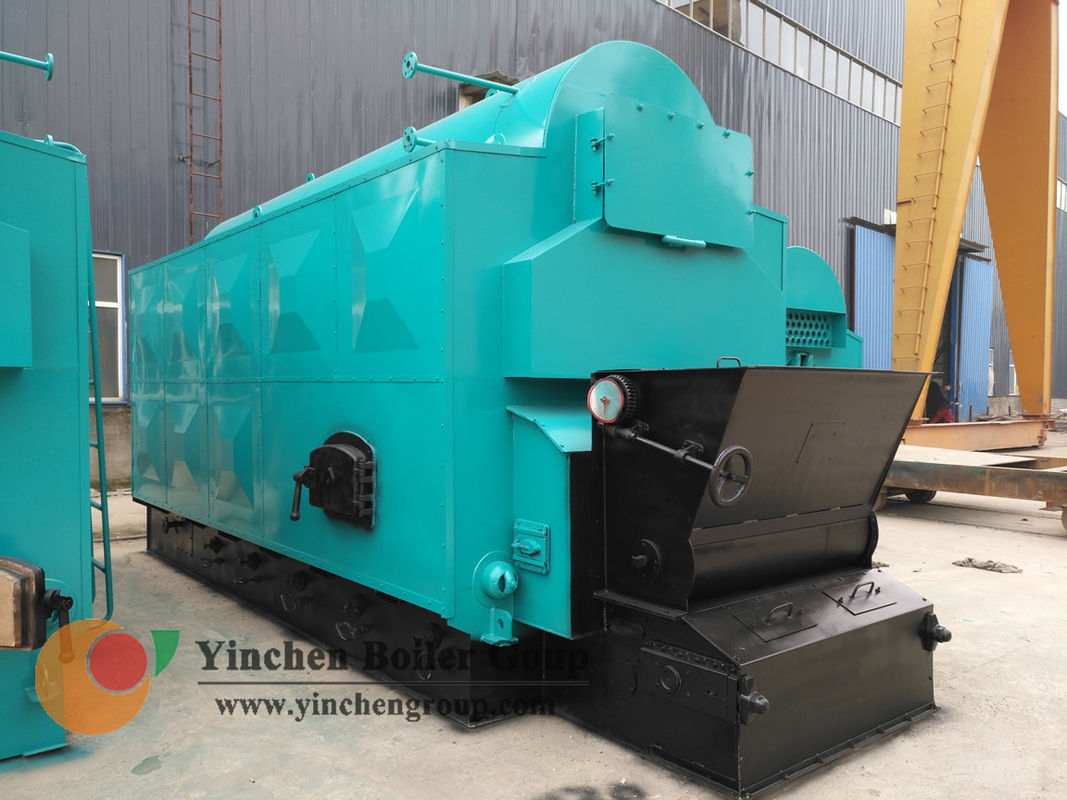

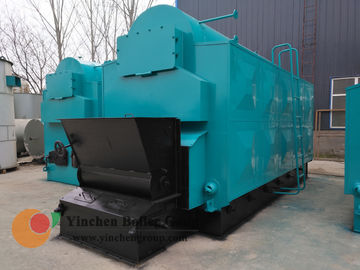

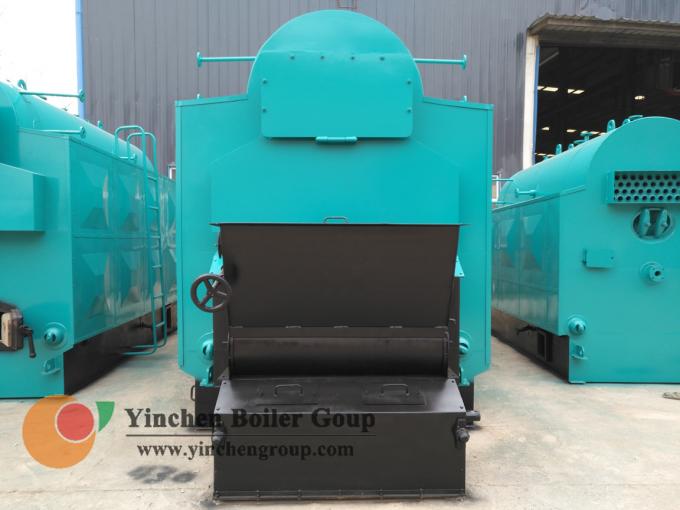

1-20 T/H Wood Biomass Fired Steam Boiler , Chain Grate Stoker Boiler

1-20 T/H Wood Biomass Fired Steam Boiler , Chain Grate Stoker Boiler

    • 1-20 T/H Wood Biomass Fired Steam Boiler , Chain Grate Stoker Boiler
    • 1-20 T/H Wood Biomass Fired Steam Boiler , Chain Grate Stoker Boiler
  • 1-20 T/H Wood Biomass Fired Steam Boiler , Chain Grate Stoker Boiler

    Product Details:

    Place of Origin: HENAN
    Brand Name: Yinchen
    Certification: ISO SGS CE
    Model Number: DZL

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: usd 5000-59800 set
    Packaging Details: 1.Package: Regular package or nut package; 2.Transportation: By land or by sea , it depends on the exporting areas.
    Delivery Time: 1-20 working days
    Payment Terms: L/C, T/T, MoneyGram
    Supply Ability: 5000 set month
    Contact Now
    Detailed Product Description
    Product Name: 1-20 T/h Steam Temperature 184-194C Automatic Feeding And Slagging Horizontal Chain Grate Coal Boiler Efficiency Rated Output: 1-20 T/h
    Structure Mode: Water And Fire Tube Type: Horizontal
    Fuel: Biomass, Coal, Wood. Etc Design Pressure: 1.0 -1.25 Mpa
    Steam Temperature: 184-194 ℃ Delivery Methods: Fast-assembling, Assembly, Semi-assembled, Bulk.
    Gate Area: 1.9-22.85 M2
    High Light:

    biomass steam generator

    ,

    wood chip steam boiler

    1-20 t/h steam temperature 184-194C automatic feeding and slagging horizontal chain grate coal boiler efficiency



    Apply Fuel: coal, wood/wood pellets, biomass, rice husk pellets, straw pellets and so on.
    Payment Terms: 30% T/T in advance ,70% before factory delivery.
    Lead Time: About 10-15 days after received the down payment.





    Boiler advantages


    1. With efficient special designed spirally corrugated tube

    Making boiler’s actual capacity is 10-15% higher than name plate capacity


    2. It uses new hearth with large volume

    Improving boiler efficiency,reducing fuel consumption in largely


    3. Most advanced technology for arch

    Boiler's hearth has a dust separation reversing chamber,it ensures that the original dust discharge concentration is lower,protection enviroment


    4. Optimally designed steam separator

    facilitates vapour gravity separation,and makes the steam humidity lower than 1%, obviously lower than international standard of 4%;





    Parameters of Steam Boiler



    Type

    Rated Evaporation

    (t/h)

    Rated Steam Pressure

    (Mpa)

    Feed Water Temperature

    (℃)

    Steam

    Temperature

    (℃)

    Grate

    Area

    (㎡)

    Exhaust

    Fume

    Temperature

    (℃)

    Thermal

    Efficiency

    (%)

    Maximum

    Shipping

    Size

    (mm)

    DZL1-1.0-

    AII

    1 1.0 20 184 1.9 157.3 80.33 5488×2000×2832
    DZL2-1.6- AII 2 1.6 20 205 3.4 163.1 80.54 5694×2550×3364
    DZL4-1.6- AII 4 1.6 20 205 5.18 169 80.28 6470×2820×3668
    DZL6-1.6- AII 6 1.6 20 205 7.55 166.3 80.94 8244×2951×3550
    DZL10-1.6- AII 10 1.6 105 205 12 151.2 80.91 7700×3200×3500
    DZL15-1.6- AII 15 1.6 105 205 18 161.6 81.50 7650×3350×3500
    DZL20-1.6- AII 20 1.6 105 206 22.85 150.6 81.44 7665×3800×3565

    1-20 t/h steam temperature 184-194C automatic feeding and slagging horizontal chain grate coal boiler efficiency1-20 t/h steam temperature 184-194C automatic feeding and slagging horizontal chain grate coal boiler efficiency


    Company Information


    Henan Yinchen Boiler Group Co.,LTD. was founded at the beginning of 2001, which has a registered captical of 51.66 million. Its headquarters is in the industrial district in Fucaolou town, Taikang county of Henan province. The production factory is adjacent to Yong Deng high-speed,and the 311 national road is also through this district,so it has very convenient transportation conditions.Besides, it is one of the key leading enterprises which firstly get the National Boiler Manufacturing license. With the manufacturing license qualification of "B" class boiler and "D2"class pressure vessel, it is director of China Industrial Boiler Association, member unit of China Welding Association and the enterprise of emphasizing the contract and credit in Henan province. The products have already passed ISO9001-2000 international quality system certification.





    Our service



    1. We will reply your inquiry in 24 hours.

    2. Experienced staffs will answer all your questions in fluent and professional English.

    3. Customized design is available.



    Guarantee: One-year warranty and full-life service for all of our steam boilers;

    A full range of original spare parts are available for all YINCHEN boilers

    Pre-sales Service: Based on customers’ request and budget, our experts make efficient, reliable

    solutions, and we produce strictly following customers’ order. Every customer has the chance to visit

    our workshops before placing the order. And we help to arrange cars, hotels, and the translators for

    every visiting customer.

    After-sales Service: Experienced technicians guidance is available on the phone, and on the internet.

    One or more engineers will be dispatched to the installation site to help install the customers’ boilers.

    We also provide necessary training about boiler operation and daily maintenance to local workers.



    Boiler FAQ

    Q1. What is your patment term?

    A1: Usually it would be 30% deposit payment, 70% balance before delivery. We accept T/T, L/C and other payment way.



    Q2. Are your company is a trading company or a factory?

    A2: We are a 20 years old industrial boiler factory, specializing in OIL and GAS and Coal fired steam boiler. Now we are one of leading industrial boiler manufacturers in China.



    Q3: What is the warranty for boilers?

    A3: Our company promises all the accessories can be changed for new ones because of quality problems within 3 years,and the boiler host has Lifetime Warranty.



    Q4: Can we get installation and commissioning service?

    A4: Yes, our engineers are available for your need, but the relative cost needs to be paid.



    Q5: What about the delivery?

    A5: Usually it will take about 35-45 days for pressured boilers, and 25-30 days for non-pressured boilers. Double confirmation shall be necessary before ordering.



    Q6: Where is your company or your factory?

    A6: Our factory is located in Taikang County Industry Cluster, Henan Province, China.



    Q7: What’s your MOQ?

    A7: Only 1 set, if you have more than that, you will get a more favorable price.



    Q8: Can we visit your factory?

    A8: Yes, welcome for your coming at any time. If you need, we can pick you up when you get to our province.




    Attention

    Before the Quotation Please Confirm the following parameters first, then we can recommend right boiler model for you with good price.

    1. Steam boiler or hot water boiler ?
    2. Steam capacity and work pressure ?
    3. Boiler fuel is coal/biomass or oil/gas ?
    4. Could you tell us the boiler is used in which working process ?
