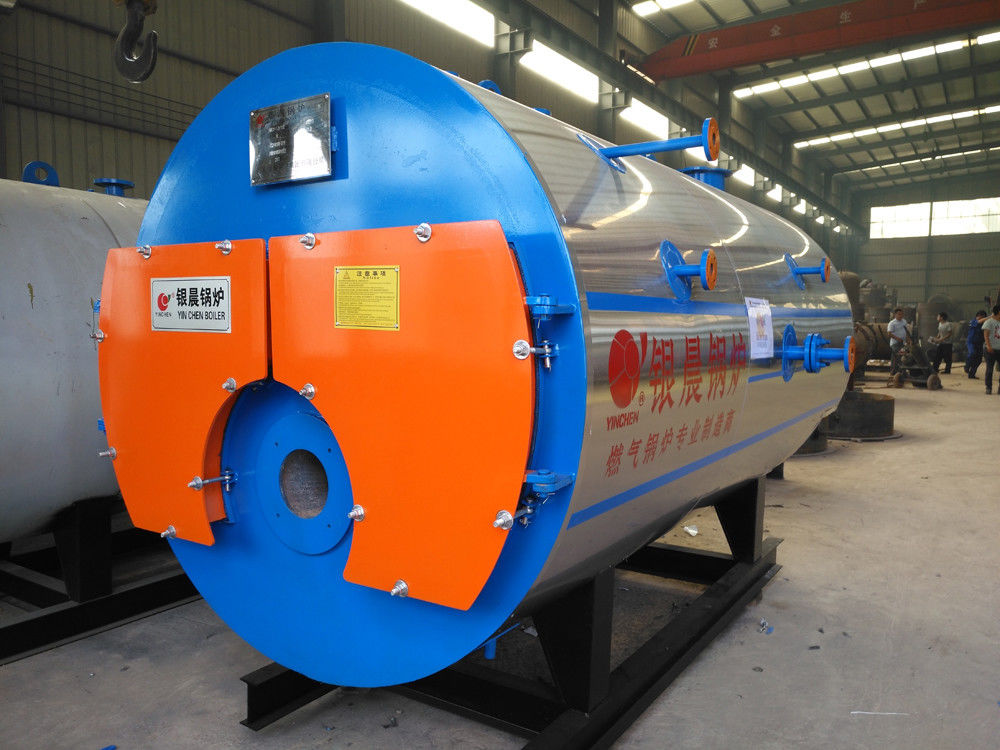

Horizontal Type Industrial Natural Gas Boiler For Textile Industry 1-20t/H

Horizontal Type Industrial Natural Gas Boiler For Textile Industry 1-20t/H

    • Horizontal Type Industrial Natural Gas Boiler For Textile Industry 1-20t/H
    • Horizontal Type Industrial Natural Gas Boiler For Textile Industry 1-20t/H
  • Horizontal Type Industrial Natural Gas Boiler For Textile Industry 1-20t/H

    Product Details:

    Place of Origin: China
    Brand Name: Yinchen
    Certification: ISO SGS CE GB
    Model Number: WNS

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: 8500-18800 USD
    Packaging Details: Boiler body covered with water-proof covering, accessories in plywood case or iron box.
    Delivery Time: 1-20 working days
    Payment Terms: L/C, T/T, MoneyGram
    Supply Ability: 5000 set month
    Contact Now
    Detailed Product Description
    Product Keywords: Industrial Boiler Rated Steam Capacity: 1-20t/h
    Pressure: 0.7Mpa 1.0Mpa,1.25Mpa Type: Horizontal,Packaged Boiler
    Design Fuel: Oil Or Gas Voltage: 220V 380V 460V 50hz/60hz
    Structure: Three Pass And Smoke Tube Factory History: More Than 40 Years

    High service China industrial steam boiler manufacturer natural gas diesel steam boiler for textile industry



    Working principle of gas steam boiler



    After the fuel and air are fully mixed, they are ignited and burned to produce high-temperature flue gas. The boiler furnace is positive pressure. After the high-temperature flue gas is burned in the furnace, it enters the second return thread pipe bundle through the back combustion chamber, and then passes through the front cigarette box. Into the third return thread pipe bundle, and finally discharged into the atmosphere.



    The boiler furnace, the back combustion chamber and the smoke pipe are all immersed in water. During the flow of the flue gas, these components exchange heat by the temperature difference between the flue gas and the water, and the steam is generated by the main steam valve.

    Technical information

    Model Rated Rated Rated Thermal Fuel Consumption Equipment Power Weight


    Capacity

    (t/h)

    Pressure

    (Mpa)

    Temperature

    (C)

    Efficiency

    (%)

    Light oil

    (Kg/h)

    Natural gas

    (Nm³/h)

    Burn light oil Burn gas (t)
    WNS1 1 0.7/1.0/1.25 170/184/194 >90 45-100 18-100 1.5 1.5 4
    WNS1.5 1.5     >90.2 101.73 123.47 2.2 1.5 5
    WNS2 2 1.0/1.25/1.6 184/194/204 >90.2 137.09 165.97 2.2 3 8
    WNS3 3     >91 205.75 249.6 7.5 7.5 9
    WNS4 4     >91 272.3 329.5 9 7.5 13
    WNS5 5     >91.5 134-402 80-500 17.2 15 15
    WNS6 6     >91.5 134-402 80-500 15 15 17
    WN8 8 1.25/1.6/2.5 194/204/225 >91.6 523.4 631.5 26 22 21
    WNS10 10     >91.6 212-890 150-1085 26 22 22
    WNS12 12     >91.8 915.5 1090 26 22 27
    WNS15 15     >91.8 931.5 1094.4 / / 34
    WNS20 20     >92 1380.33 1598.44 / / 45
    Note: Parameter is for reference only, we can design the boilers based on customers’ needs.


    Product introduce and advantage

    1.  Three-return structure: adopts the international popular shell-type three-return ,full wet back structure, combustion chamber large volume design, to ensure the combustion more fully. Fuel combustion in the furnace by micro-positive pressure, high temperature smoke gas along the boiler furnace go backward through reverse flow combustor turn 180°into the first smoke flue tube bundle, pass the oppressive front smoke box then turn 180°into the second smoke flue tube bundle, after the convection heat transfer injection into the atmosphere.
    2. The corrugated furnace: the combustion chamber adopt full corrugated furnace structure, not only strengthen the flue gas disturbance, but also increased the radiation transfer area; not only increase the rigidity of the furnace, but also effectively weaken expansion stress of furnace; both enhance the heat transfer effect, and promote the fuel combustion in the furnace.
    3.  The unique pipe and tube sheet welding technology: adopts the first pre-expansion and then all welding, and then expanded connection advanced technology. Both to prevent the pipe gap corrosion, and enhance the welding strength; adopts the high heat transfer coefficient of the screw smoke tube, to strength the convective heat transfer effect, reduce the exhaust gas temperature, improve the boiler thermal efficiency.
    4.  Symmetrical activities hinge joint front, back smoke door: easy to open, convenient for repair, clean up.
    5.  Wet back structure: the boiler use wet back structure, full pull side butt weld,reliable performance, low maintenance costs.
    6.  Rear-view device: rear view device design, easy to observe the combustion situation.
    7.  Security: design over-temperature, overpressure, water-shortage, leakage detecting, flameout and other protection functions, boiler operation safe and reliable.

    Our service

    1. We will reply your inquiry in 7*24 hours.
    2. Experienced staffs will answer all your questions in fluent and professional English.
    3. Customized design is available.

    Guarantee: One-year warranty and full-life service for all of our steam boilers;

    A full range of original spare parts are available for all YINCHEN boilers

    Pre-sales Service: Based on customers’ request and budget, our experts make efficient, reliable

    solutions, and we produce strictly following customers’ order. Every customer has the chance to visit

    our workshops before placing the order. And we help to arrange cars, hotels, and the translators for

    every visiting customer.

    After-sales Service: Experienced technicians guidance is available on the phone, and on the internet.

    One or more engineers will be dispatched to the installation site to help install the customers’ boilers.

    We also provide necessary training about boiler operation and daily maintenance to local workers.


    FAQ

    Q- What is your payment term ?

    A- Usually it would be 30% deposit payment, 70% balance before delivery. T/T, L/C and other way.



    Q- Are your company is a trading company or a factory?

    A- We are a 20 years old industrial boiler factory, specializing in OIL and GAS and Coal fired steam boiler.



    Q- What is the warranty for boilers?

    A- Our company promises all the accessories can be changed for new ones because of quality problems within 3 years, and the boiler host has Lifetime Warranty.



    Q- Can we get installation and commissioning service ?

    A- Yes, our engineers are available for your need, but the relative cost needs to be paid.



    Q- What about the delivery ?

    A- Usually it will take about 35-45 days for pressured boilers, and 25-30 days for non-pressured boilers. Double confirmation shall be necessary before ordering.



    Q- Where is your company or your factory?

    A- Our factory is located in Taikang County Industry Cluster, Henan Province, China.



    Q- What’s your MOQ?

    A- Only 1 set, if you have more than that, you will get a more favorable price.



    Q- Can we visit your factory ?

    A- Yes, welcome for your coming at any time. If you need, we can pick you up when you get to our province.
