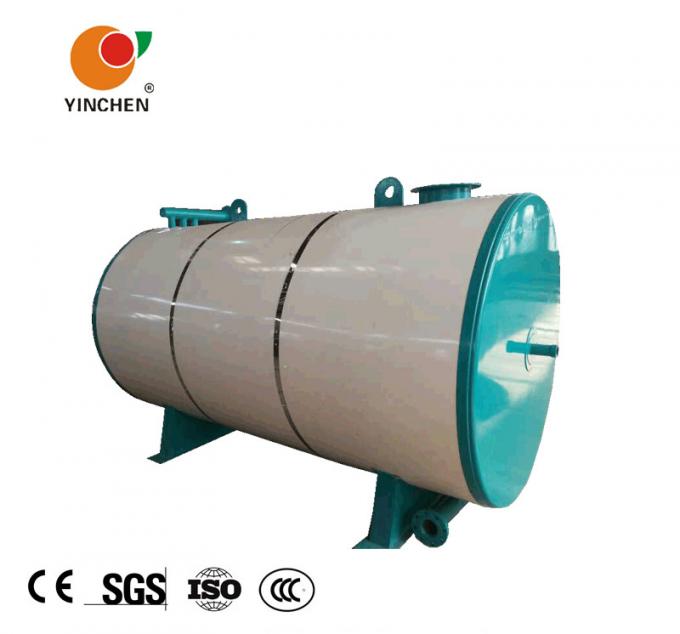

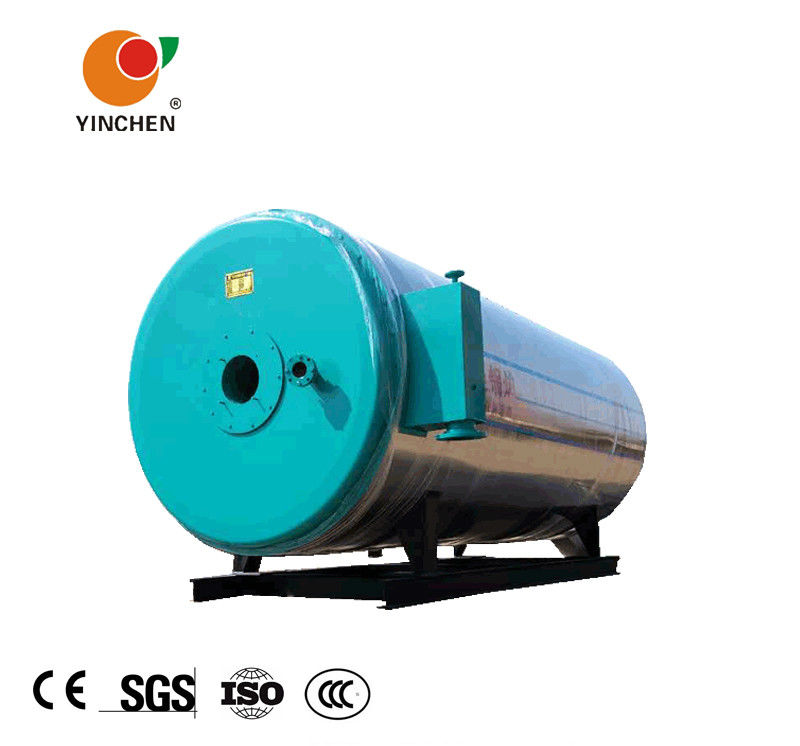

Diesel Natural Gas Fired Thermic Fluid Boiler Horizontal 0.6 Mpa 320C Blue Red Color

Diesel Natural Gas Fired Thermic Fluid Boiler Horizontal 0.6 Mpa 320C Blue Red Color

    • Diesel Natural Gas Fired Thermic Fluid Boiler Horizontal 0.6 Mpa 320C Blue Red Color
    • Diesel Natural Gas Fired Thermic Fluid Boiler Horizontal 0.6 Mpa 320C Blue Red Color
  • Diesel Natural Gas Fired Thermic Fluid Boiler Horizontal 0.6 Mpa 320C Blue Red Color

    Product Details:

    Place of Origin: HENAN
    Brand Name: Yinchen
    Certification: ISO SGS CE
    Model Number: YYW

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: usd 5000-59800 set
    Packaging Details: 1.Package: Regular package or nut package; 2.Transportation: By land or by sea , it depends on the exporting areas.
    Delivery Time: 1-20 working days
    Payment Terms: L/C, T/T, MoneyGram
    Supply Ability: 5000 set month
    Contact Now
    Detailed Product Description
    Product Name: Yinchen Brand YYW Series Low Pressure 120-1500kw Thermal Power 0.6mpa 320C Thermic Fluid Boiler Usage: Industry
    Capacity: 0.21-1.9 M³ Type: Horizontal
    Suitable Fuel: Gas, Oil Design Pressure: 1.0 Mpa
    Output: Thermal Oil Max Working Temperature: 350℃
    Circulating Oil: 40-200 M³/h System Installed Capacity: 14kw, 22kw, 40kw, 66kw, 70kw

    yinchen brand YYW series low pressure 120-1500kw thermal power 0.6mpa 320C thermic fluid boiler



    Product Description




    1. It is fast-assembly forced circulating oil/gas fired boiler with large heating area and compact structure.
    2. The heating area is formed by the closely arranged coils from the inside, middle and outside directions. The inner coil is radiation heating area. The middle and outside coils and the the inner coil surface form the convection heating area.
    3. The fuel is fired and releases heat in the combustion chamber that formed by inner coils. After taking in most heat through radiation heating area, the high temperature smoke will be into the convection heating area and exchanges heat.
    4. It has the four-return design with high efficiency, which can realize the comprehensive evenly heating- up with low thermal inertia.
    5. The air goes into the boiler from the air inlet of the burner of the boiler’s front part, and then reaches to the back part and involves into firing through the clamp cover of between the inner and outside layer of heat-carrier boiler. In this process the air forms into four returns and finally is injected through the chimney.


    technical parameters



    Type

    YYW0.24
    (20)

    YYW0.35
    (30)

    YYW0.6
    (50)

    YYW0.9
     (75)

    YYW1.2
    (100)

    YYW1.5
    (235)

    YYW1.8(
    150)

    YYW2.5
    (200)

    YYW3
    (250)

    Rated thermal
    Power(MW)

    0.24

    0.35

    0.6

    0.9

    1.2

    1.5

    1.8

    2.5

    3.0

    Thermal efficiency(%)

    90

    90

    90

    90

    90

    90

    90

    90

    90

    Rated steam
    Pressure(Mpa)

    1.0

    1.0

    1.0

    1.0

    1.0

    1.0

    1.0

    1.0

    1.0

    Maximum working
    Temperature(℃)

    350

    350

    350

    350

    350

    350

    350

    350

    350

    Capacity(m³)

    0.21

    0.25

    0.28

    0.44

    0.64

    0.793

    1.25

    1.76

    1.90

    Circulating oil(m³/h)

    40

    40

    80

    80

    80

    100

    100

    200

    200

    Piping connection
    Diameter(DN)

    100

    100

    100

    100

    125

    125

    125

    150

    150

    System installed
    Capacity(kw)

    14

    14

    22

    22

    40

    40

    40

    66

    70

    Size

    Diameter

    1016

    1016

    1216

    1416

    1716

    1716

    2000

    2000

    2000

    Height

    2050

    2350

    2450

    2900

    3300

    3900

    4100

    5100

    5300


    yinchen brand YYW series low pressure 120-1500kw thermal power 0.6mpa 320C thermic fluid boileryinchen brand YYW series low pressure 120-1500kw thermal power 0.6mpa 320C thermic fluid boiler
