|Place of Origin:||HENAN|
|Certification:||ISO SGS CE|
|Model Number:||DZH/ DZL|
|Minimum Order Quantity:||1|
|Price:||usd 5000-59800 set|
|Packaging Details:||1.Package: Regular package or nut package; 2.Transportation: By land or by sea , it depends on the exporting areas.|
|Delivery Time:||1-20 working days|
|Payment Terms:||L/C, T/T, MoneyGram|
|Supply Ability:||5000 set month|

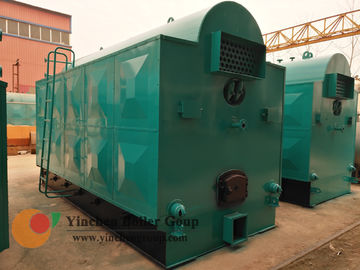

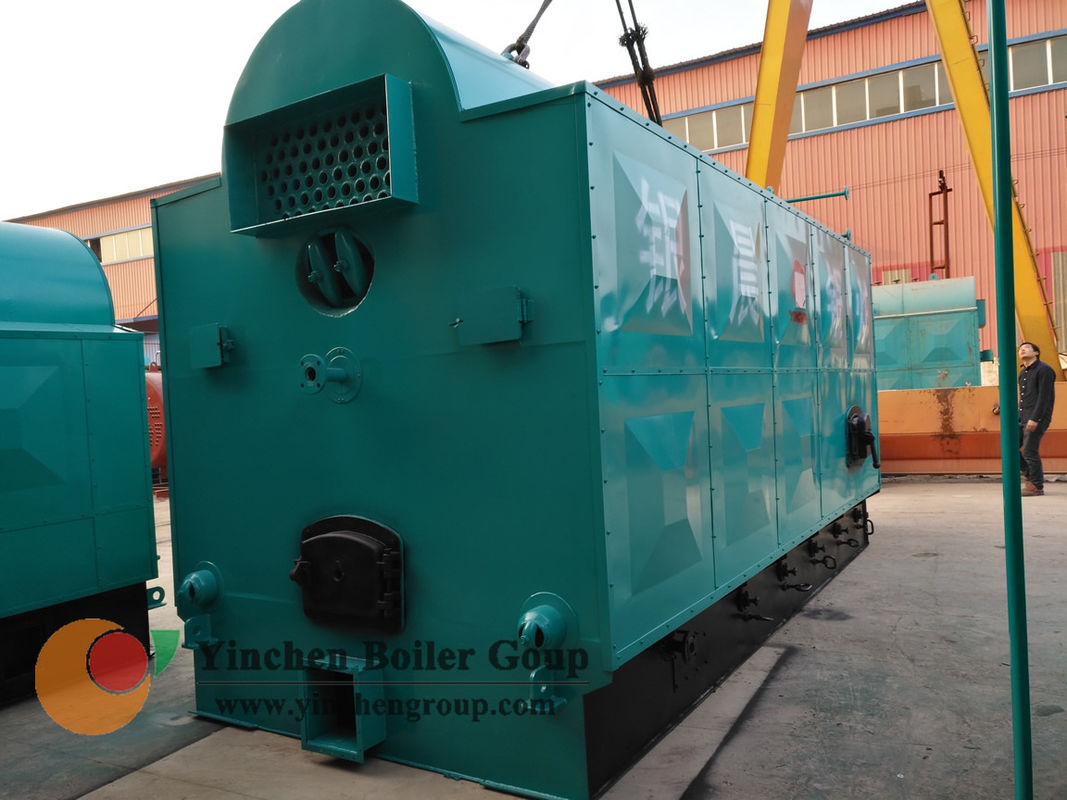

|Product Name:||Yinchen Brand DZH Type 170- 194C Steam Pressure 0.7-1.26mpa Biomass Steam Generator||Rated Output:||1-4 T/h|
|Structure Mode:||Water And Fire Tube||Thermal Efficiency:||80.33%-83.03%|
|Fuel:||Biomass, Coal, Wood. Etc||Design Pressure:||0.7 -1.25 Mpa|
|Steam Temperature:||170-194 ℃||Delivery Methods:||Fast-assembling, Assembly, Semi-assembled, Bulk.|
|Gate Type:||Chain Grate Or Moving Grate|
biomass steam generator,
wood chip steam boiler
|Apply Fuel: coal, wood/wood pellets, biomass, rice husk pellets, straw pellets and so on.|
|Payment Terms: 30% T/T in advance ,70% before factory delivery.|
|Lead Time: About 10-15 days after received the down payment.|
biomass steam generator Application:
DZH series boiler is the single drum longitudinal type water and fire tube shell water boiler, the burning equipment is the moving grate.
biomass steam generator Structure:
Main engine is single drum longitudinal arrangement and inside of drum is a single-pass thread smoke tube. The left and right sides of the hearth is equipped with bare water wall tube, part of riser pipe forms the furnace top, and refractory brick Hanging at the bottom of the drum doesn't accept high temperature flame radiation. Drum on both sides of the lower part has two symmetrical convective pass, and water wall cured tube is assembled at 750 mm from the center line of the drum, so as to avoid tearing weld joint.
1. The fire grate is compact and dense. It is especially suitable for the combustion of biomass particles.
2. Boiler internal heating area is larger than the same specifications of coal-fired boilers, to make up for the disadvantage of biomass fuel combustion value.
3. The condition is stable, continuous fuel combustion. By adjusting the secondary speed air volume, control the speed of combustion ignition.
4. Easy to operate, user-friendly design, without complicated procedures.
5. It takes the thread smoke tube to enhance heat transfer, improve the heat transfer coefficient and thermal efficiency. Due to disturbance of smoke in the tube, the smoke pipe is not easy to accumulate dust ,it can clean by itself .
6. Fuel easily obtained, the ash can be recycled.
Parameters of biomass steam generator
|DZH Series New-type Fire and Water Tube Steam Boiler|
|Rated Steam Pressure
Rated Steam Pressure
Feed Water Temperature
Henan Yinchen Boiler Group Co.,LTD. was founded at the beginning of 2001, which has a registered captical of 51.66 million. Its headquarters is in the industrial district in Fucaolou town, Taikang county of Henan province. The production factory is adjacent to Yong Deng high-speed,and the 311 national road is also through this district,so it has very convenient transportation conditions.Besides, it is one of the key leading enterprises which firstly get the National Boiler Manufacturing license. With the manufacturing license qualification of "B" class boiler and "D2"class pressure vessel, it is director of China Industrial Boiler Association, member unit of China Welding Association and the enterprise of emphasizing the contract and credit in Henan province. The products have already passed ISO9001-2000 international quality system certification.
1. We will reply your inquiry in 24 hours.
2. Experienced staffs will answer all your questions in fluent and professional English.
3. Customized design is available.
Guarantee: One-year warranty and full-life service for all of our steam boilers;
A full range of original spare parts are available for all YINCHEN boilers
Pre-sales Service: Based on customers’ request and budget, our experts make efficient, reliable
solutions, and we produce strictly following customers’ order. Every customer has the chance to visit
our workshops before placing the order. And we help to arrange cars, hotels, and the translators for
every visiting customer.
After-sales Service: Experienced technicians guidance is available on the phone, and on the internet.
One or more engineers will be dispatched to the installation site to help install the customers’ boilers.
We also provide necessary training about boiler operation and daily maintenance to local workers.
Q1. What is your patment term?
A1: Usually it would be 30% deposit payment, 70% balance before delivery. We accept T/T, L/C and other payment way.
Q2. Are your company is a trading company or a factory?
A2: We are a 20 years old industrial boiler factory, specializing in OIL and GAS and Coal fired steam boiler. Now we are one of leading industrial boiler manufacturers in China.
Q3: What is the warranty for boilers?
A3: Our company promises all the accessories can be changed for new ones because of quality problems within 3 years,and the boiler host has Lifetime Warranty.
Q4: Can we get installation and commissioning service?
A4: Yes, our engineers are available for your need, but the relative cost needs to be paid.
Q5: What about the delivery?
A5: Usually it will take about 35-45 days for pressured boilers, and 25-30 days for non-pressured boilers. Double confirmation shall be necessary before ordering.
Q6: Where is your company or your factory?
A6: Our factory is located in Taikang County Industry Cluster, Henan Province, China.
Q7: What’s your MOQ?
A7: Only 1 set, if you have more than that, you will get a more favorable price.
Q8: Can we visit your factory?
A8: Yes, welcome for your coming at any time. If you need, we can pick you up when you get to our province.
Before the Quotation Please Confirm the following parameters first, then we can recommend right boiler model for you with good price.
