Yinchen Brand Boiler Manufacture Industrial Steam Boiler For Feed Mill

Yinchen Brand Boiler Manufacture Industrial Steam Boiler For Feed Mill

    • Yinchen Brand Boiler Manufacture Industrial Steam Boiler For Feed Mill
    • Yinchen Brand Boiler Manufacture Industrial Steam Boiler For Feed Mill
  • Yinchen Brand Boiler Manufacture Industrial Steam Boiler For Feed Mill

    Product Details:

    Place of Origin: China
    Brand Name: Yinchen
    Certification: ISO SGS CE GB

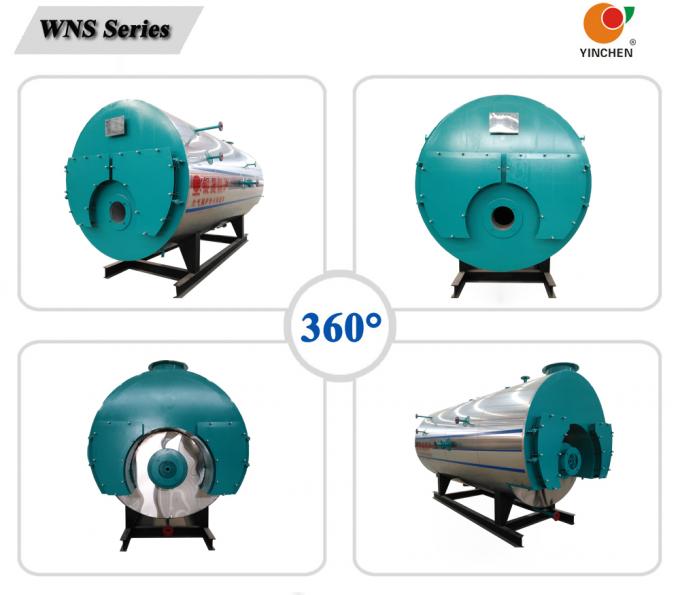

    Model Number: WNS

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: 6000-69800 USD
    Packaging Details: 1.Package: Boiler body covered with water-proof covering, accessories in plywood case or iron box.
    Delivery Time: 1-20 working days
    Payment Terms: L/C, T/T, MoneyGram
    Supply Ability: 5000 set month
    Contact Now
    Detailed Product Description
    Name: Industrial Steam Boiler For Feed Mill Material: Q245R Steel Plate
    Boiler Warranty: 12 Years Boiler Control: Automatic
    Thermal Efficiency: >94% Type: Natural Circulation
    After-sales Service: Engineer Available To Overseas Service Stype: Horizontal
    High Light:

    propane fired steam boiler

    ,

    3 pass fire tube boiler

    Yinchen Brand Boiler Manufacture Industrial Steam Boiler For Feed Mill

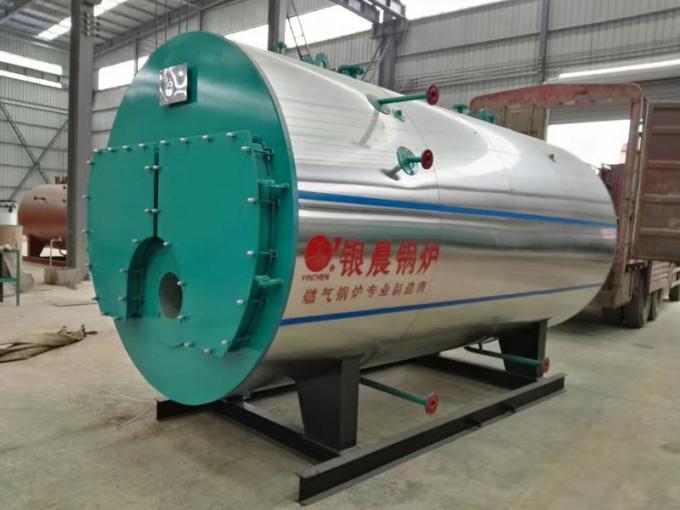

    The boiler belongs to the furnace-down type internal combustion three-return wet-back type shell quick-loading boiler.

    With the following feature:

    1. Unique structure design of big combustion chamber, 3-stroke all wet-back structure, super radiation heat-exchange and low temperature burning to improve thermal efficiency, reduce NOX emission and protect the environment.
    2. Adoption of thread smoke tube improves heat transmission and thermal efficiency.
    3. Multiple-sealing of boiler front and back smoke box prevent smoke leakage.
    4. Large steam space leads to better steam quality.
    5. Multiple measures of such as water level,steam pressure and smoke-discharging temperature make the boiler safe and reliable.
    6.Efficient thermal protection materials ensurethe lower boiler surface temperature.
    7.Boiler energy-saver of GENTLE company save the fuel cost by 5-15%, Upgrading the boiler into condenser ones.
    8.Multiple-point pollutant discharging makes the heating surface of boiler cleaner.

    Technical :



    Boiler Model

    Rated CapacityRated PressureSteam Temperature


    Fuel consumption

    Thermal efficiencyWeight
    t/hMpa

    Diesel oil
    (Kg/h)

    Natural gas
    (Nm³/h)

    %T
    WNS0.5-1.0-Y(Q)0.5118420-3518-35>903
    WNS1-1.0-Y(Q)1118445-10070-100>90.24.3
    WNS2-1.25-Y(Q)21.25194120-140140-150>91.57.2
    WNS3-1.25-Y(Q)31.25194180-210185-230>91.68
    WNS4-1.25-Y(Q)41.25194230-280240-290>91.79.6
    WNS6-1.25-Y(Q)61.25194360-380370-400>9216.5
    WNS8-1.25-Y(Q)81.25194470-510480-530>91.324.8
    WNS10-1.25-Y(Q)101.25194600-630650-700>92.426.8
    WNS15-1.25-Y(Q)151.25194900-940930-1000>92.538
    WNS20-1.25-Y(Q)201.251941200-13001350-1500>9355




    Service:

    Pre-sale service: Provide relative technical data,foundation drawing,layout drawing,boiler room drawing and general drawing.

    After-sale service:Help customer installation and commissioning. Free maintenance and repair for one year.

    FAQ

    Q1: How do you get the price?
    First,You can tell us the boiler capacity, the fuel or pressure. Or tell us your configuration requirement.
    Q2: Why do you choose us?
    (1).Strength calculation report with applied materials information;
    (2).100%NDT(non-destructive inspection) report of steel plate, tube and welding rod;
    (3).100% X-ray inspection(welding seam): ensure the quality of entire boiler;
    (4).Hydrostatic test ensure the standard working pressure and safety;
    (5).Third-party inspection report:By Henan Boiler Inspection Institute;
    (6).Passed ISO:9001 and SGS certificate.

    Q3: What about the installation and Commissioning?
    After you receive the boiler, we will guide you to make some preparation for installation;If necessary, our expert will fly to your place in 72 hours. The experts will responsible for guiding installation and commissioning.

    Q4:What is the using life of your boiler?
    A:Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,you can use 20-25 years.



    Packing and transportation:

    1.When transport, the boiler body and large auxiliary equipments (platform, chimney, economizer, etc ) are nude packed or tied up.
    2.the smaller auxiliary equipments are encased by using the strong intensity wooden or plywood box.
    3.The products could be transported by ship and train, customers could designate the ports.
    4.If necessary, the small auxiliaries could be transported by airplane.






    Yinchen Brand Boiler Manufacture Industrial Steam Boiler For Feed MillYinchen Brand Boiler Manufacture Industrial Steam Boiler For Feed MillYinchen Brand Boiler Manufacture Industrial Steam Boiler For Feed MillYinchen Brand Boiler Manufacture Industrial Steam Boiler For Feed Mill
