| Place of Origin: | China |
| Brand Name: | Yinchen |
| Certification: | ISO SGS CE |
| Model Number: | WNS |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 200 set per month |
| Packaging Details: | Export standard ocean transport packing |
| Delivery Time: | 10-15 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 3500-89000USD |
| Item Name: | Steam Boiler For Industry | Boiler Type: | Horizontal |
|---|---|---|---|
| Fuel Type: | Oil,Gas | Structure: | Fire Tube |
| Pressure: | 0.7Mpa 1.0Mpa 1.25Mpa 1.6Mpa 2.5Mpa | Temperature: | 170C/184C/194C/204C/224C |
| High Light: | propane fired steam boiler,3 pass fire tube boiler |
||

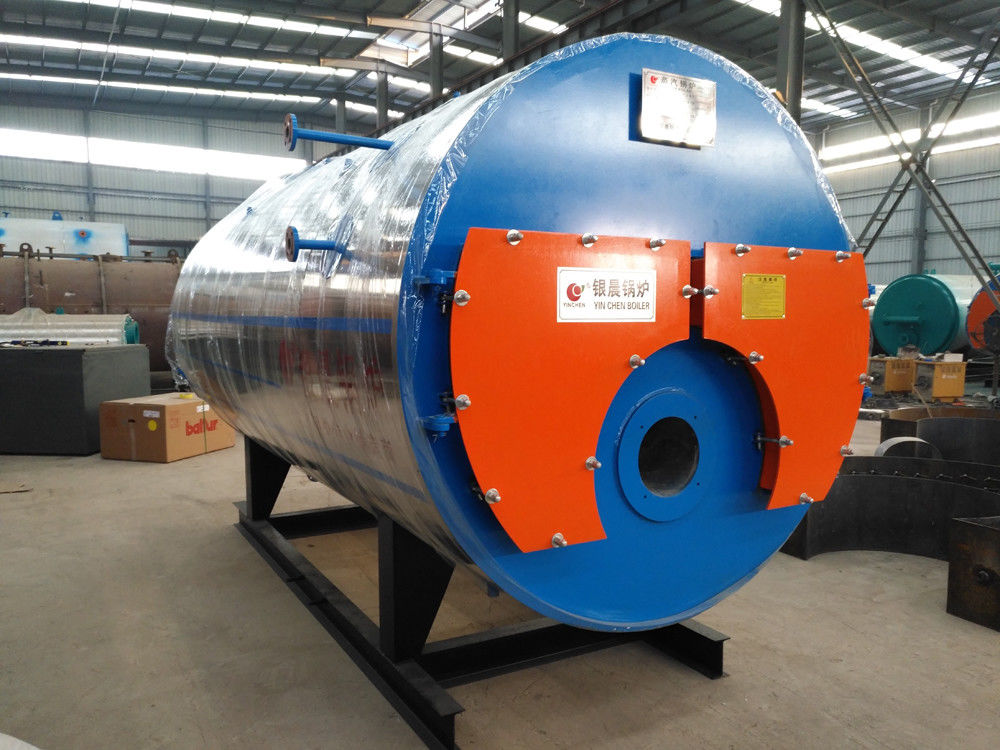

Industrial Oil Gas Fire Tube Steam Boiler For Food Industry
Brief Introduction
1. The WNS oil/gas fired steam boiler is a horizontal internal combustion and three quick return boiler with fire tubes.
2. It has fully wet back structure, and the high temperature flue gas will be injected into the atmosphere after convection heat transfer through the reversal chamber into the first flue tube bundle and the front smoke box with turning 180℃ into the second flue tube bundle.
3. The boiler has excellent technical performance of industrial combustor and low water level alarm and low water levels, high steam pressure.
4. Besides, It has the features of compact structure, safe and reliable design, fast installation, less pollution, low noise and high efficiency.

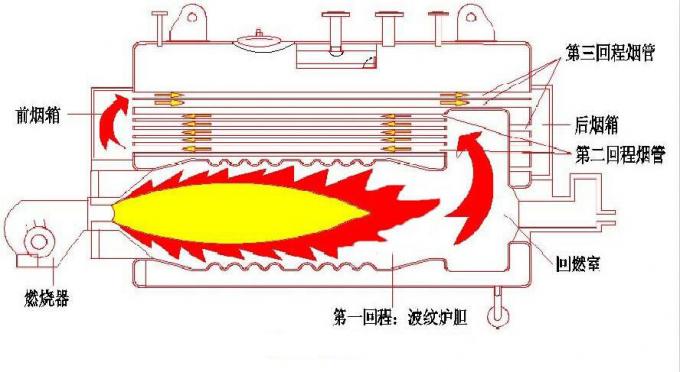

Boiler working principle and flue gas process
After the fuel and air are fully mixed, they are ignited and burned to produce high-temperature flue gas. The boiler furnace is positive pressure.
After the high-temperature flue gas is burned in the furnace, it enters the second return thread pipe bundle through the back combustion chamber, and then passes through the front cigarette box. Into the third return thread pipe bundle, and finally discharged into the atmosphere.
The boiler furnace, the back combustion chamber and the smoke pipe are all immersed in water. During the flow of the flue gas, these components exchange heat by the temperature difference between the flue gas and the water, and the steam is generated by the main steam valve.
Technical Parameter
| Type | WNS0.5-1.0-Y(Q) | WNS1-1.0-Y(Q) | WNS2-1.0-Y(Q) | WNS3-1.25-Y(Q) | WNS4-1.25-Y(Q) | WNS6-1.25-Y(Q) | WNS8-1.25-Y(Q) | WNS10-1.25-Y(Q) |
|
Rated Output (t/h) |
0.5 | 1 | 2 | 3 | 4 | 6 | 8 | 10 |
|
Rated Steam Pressure (Mpa) |
1.0 | 1.0 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 |
|
Steam Temperature (℃) |
184 | 184 | 194 | 194 | 194 | 198 | 194 | 194 |
|
Thermal Efficiency (%) |
92.2 | 92.4 | 92.5 | 92.5 | 92.8 | 93.2 | 93.5 | 93.8 |
|
Power Consumption (Kw) |
2.96 (2.96) |
4.4/8.9 (3.7) |
7/20.2 (7) |
9.5/22.7 (10.5) |
13/26.2 (13.5) |
23/45.4 (20.5) |
24/37.5 (24) |
39.5/52 (39.5) |
| Suitable Fuel | Light Oil/ Heavy oil, Natural gas/ Town gas, Coke oven gas | |||||||
| Power Supply(AC) | 380V 50Hz | |||||||

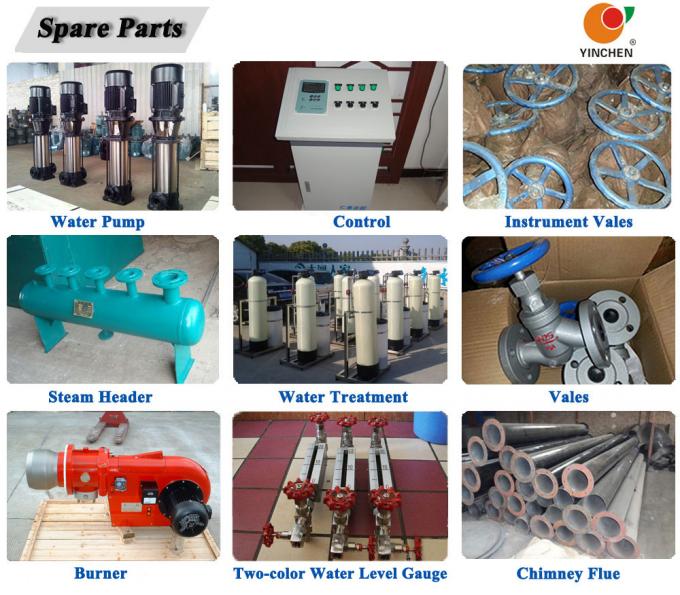

Boiler spare parts and accessories
Burner
Electric control cabinet
Valves and instruments
Steam header
Feed water pump
Economizer
Water treatment
If you have other requirement,please tell us.
Why Choose us?
1. Adopts horizontal type three pass structure, absorbs the thermal expansion effectively. Uses large diameter corrugated furnace, large combustion space, high combustion efficiency.
2. Equipped with multiple safety protection devices, such as pressure controller, pressure transmitter, water level alarm, safety valve, etc.
3. Adopts PLC full automatic intelligent control cabinet and interlock protection program, has the protection function of water shortage, over pressure, over temperature, gas leakage, flame out, electric leakage, and phrase-lacking or overloading of motor, etc.
4. Equipped with reliable boiler auxiliaries,such as world known famous burner, international famous brand water pump,Siemens brand electric control elements, American Fleck brand water softener, etc
5. Adopt the latest boiler technology, 100% flaw detection test, high quality, and long working life, low maintenance fee.
Welcome your inquiry to get more information and best price!
