| Place of Origin: | China |
| Brand Name: | Yinchen |
| Certification: | CCC CE ISO SGS |
| Model Number: | WNS |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 3000-50000USD |
| Packaging Details: | Regular package:Boiler body naked package,Accessory in wooden box. |
| Delivery Time: | 10-15 work days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 200 steam capacity per month |
| Product Name: | Industrial Steam Boiler | Pressure: | Medium And Low Pressure Boiler |
|---|---|---|---|
| Color: | Customized | Type: | Horizontal |
| Output: | Steam | Capacity: | 0.5-20t/h |
| High Light: | propane fired steam boiler,3 pass fire tube boiler |
||
Product Feature and introduction:

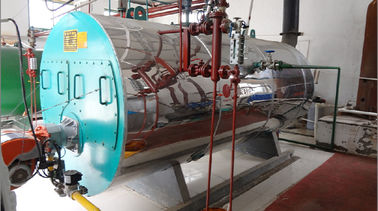

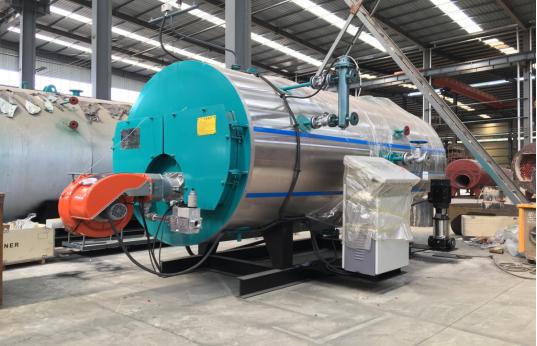

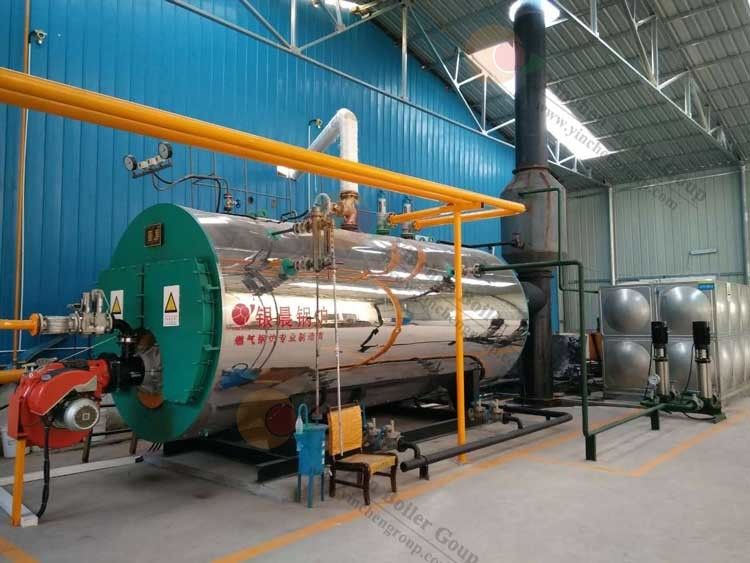

1. The WNS oil/gas fired steam boiler is a horizontal internal combustion and three quick return boiler with fire tubes.
2. It has fully wet back structure, and the high temperature flue gas will be injected into the atmosphere after convection heat transfer through the reversal chamber into the first flue tube bundle and the front smoke box with turning 180℃ into the second flue tube bundle.
3. The boiler has excellent technical performance of industrial combustor and low water level alarm and low water levels, high steam pressure.
4. Besides, It has the features of compact structure,safe and reliable design, fast installation, less pollution, low noise and high efficiency.
Boiler detailed information:
1.Model:WNS
2.Rated Steam Capacity: 0.5t/h-20t/h
3.Design pressure:0.7Mpa 1.0Mpa(10bar), 1.25Mpa(13bar), 1.6Mpa(16bar),2.5Mpa(25bar)
4.Rated Stem temperature: 171C 184C 194C 204C 224C
5.Design fuel:natural gas,LPG,LNG,CNG,town gas,city gas,biogas, diesel oil,heavy oil etc.
6.Structure: three pass; fire tube; wet back.

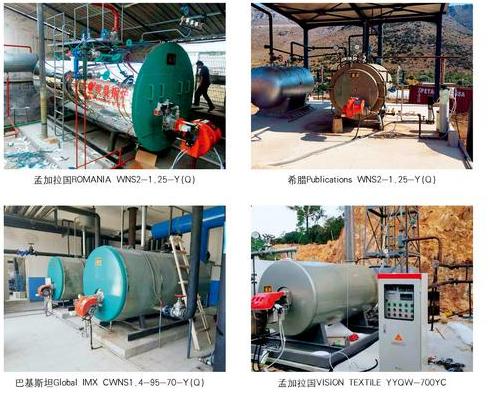

7.Application: textile mill,milk pasteurization,corrugated machine, sugar factory,printing dyeing mill,medicine industry, food & beverage industry, chemical industry, garment industry, food processing industry,wood processing industry, etc.
Technical parameter:
| Type | WNS0.5-1.0-Y(Q) | WNS1-1.0-Y(Q) | WNS2-1.0-Y(Q) | WNS3-1.25-Y(Q) | WNS4-1.25-Y(Q) | WNS6-1.25-Y(Q) | WNS8-1.25-Y(Q) | WNS10-1.25-Y(Q) |
|
Rated Output (t/h) |
0.5 | 1 | 2 | 3 | 4 | 6 | 8 | 10 |
|
Rated Steam Pressure (Mpa) |
1.0 | 1.0 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 |
|
Steam Temperature (℃) |
184 | 184 | 194 | 194 | 194 | 198 | 194 | 194 |
|
Thermal Efficiency (%) |
92.2 | 92.4 | 92.5 | 92.5 | 92.8 | 93.2 | 93.5 | 93.8 |
|
Power Consumption (Kw) |
2.96 (2.96) |
4.4/8.9 (3.7) |
7/20.2 (7) |
9.5/22.7 (10.5) |
13/26.2 (13.5) |
23/45.4 (20.5) |
24/37.5 (24) |
39.5/52 (39.5) |
| Suitable Fuel | Light Oil/ Heavy oil, Natural gas/ Town gas, Coke oven gas | |||||||
| Power Supply(AC) | 380V-410V 50Hz | |||||||
