    Product Details:

    Place of Origin: China
    Brand Name: Yinchen
    Certification: ISO SGS CE
    Model Number: WNS

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: 3500-80000USD
    Packaging Details: Package: Boiler body covered with water-proof covering, accessories in plywood case or iron box.
    Delivery Time: 10-15 work days
    Payment Terms: L/C, T/T, MoneyGram, Western Union
    Contact Now
    Detailed Product Description
    Product Name: Industrial Steam Boiler For Textile Industry Material: Boiler Special Steel
    Fuel Type: Oil,Gas Color: Customized
    Shipping: Ocean Or Railway Usage: All Kinds Of Industry
    Feature 1: Three Pass Feature 2: Full Wet Back
    Feature 3: Corrugated Furnace,threaded Pipe
    High Light:

    oil fired condensing boilers

    ,

    3 pass fire tube boiler

    Factory price packaged industrial automatic Gas Fired Smoke Pipe Steam Boiler For Fertilizer Factory



    Product Introduction:

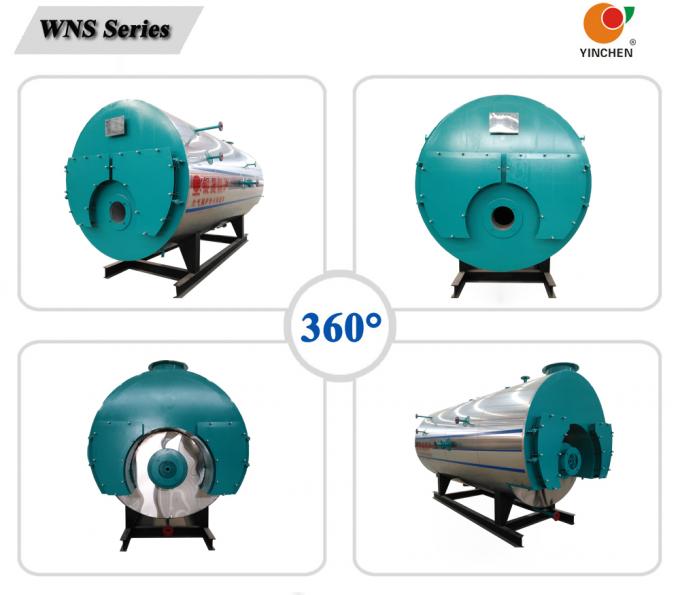

    WNS series boiler are high quality,famous brand products.The capacity is from 1ton to 20ton,pressure is from 0.7mpa to 1.6mpa





    WNS series automatic oil-fired, gas-fired boilers were adopted advanced international three-pass and wet back structure. The boilers are matched excellent imported brand burners and high automatic control system.





    Working principle of gas steam boiler



    After the fuel and air are fully mixed, they are ignited and burned to produce high-temperature flue gas. The boiler furnace is positive pressure.



    After the high-temperature flue gas is burned in the furnace, it enters the second return thread pipe bundle through the back combustion chamber, and then passes through the front cigarette box. Into the third return thread pipe bundle, and finally discharged into the atmosphere.



    The boiler furnace, the back combustion chamber and the smoke pipe are all immersed in water. During the flow of the flue gas, these components exchange heat by the temperature difference between the flue gas and the water, and the steam is generated by the main steam valve.







    Technicals:







    Boiler Model

    Rated Capacity Rated Pressure Steam Temperature



    Fuel consumption

    Thermal efficiency Weight
      t/h Mpa

    Diesel oil

    (Kg/h)

    Natural gas

    (Nm³/h)

    % T
    WNS0.5-1.0-Y(Q) 0.5 1 184 20-35 18-35 >90 3
    WNS1-1.0-Y(Q) 1 1 184 45-100 70-100 >90.2 4.3
    WNS2-1.25-Y(Q) 2 1.25 194 120-140 140-150 >91.5 7.2
    WNS3-1.25-Y(Q) 3 1.25 194 180-210 185-230 >91.6 8
    WNS4-1.25-Y(Q) 4 1.25 194 230-280 240-290 >91.7 9.6
    WNS6-1.25-Y(Q) 6 1.25 194 360-380 370-400 >92 16.5
    WNS8-1.25-Y(Q) 8 1.25 194 470-510 480-530 >91.3 24.8
    WNS10-1.25-Y(Q) 10 1.25 194 600-630 650-700 >92.4 26.8
    WNS15-1.25-Y(Q) 15 1.25 194 900-940 930-1000 >92.5 38
    WNS20-1.25-Y(Q) 20 1.25 194 1200-1300 1350-1500 >93 55







    Prouduct Application:



    WNS series is widely used in garment factory, textile factory, brick making plant, food processing plant, beer processing, rice milling field, chemical plant, pharmaceutical factory, etc.







    FAQ:

    How to choose a boiler type?

    Identify the type of boiler you want(steam boiler or hot water boiler).

    The boiler capacity,pressure,and fuel(oil,gas,biomass,coal),or you can consult us.

    How about the installation?

    Guide installation online or we can provide staff installation by our staffs, but you have to afford the extra cost if If we send professional staff overseas to install it.

    How about your delivery time?

    Generally, it will take 10 to 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

    What about after-sale service?

    We will supply professional after-sale service team as soon as we receiving your problem feedback, we will dispatch our engineers to your country and solve your problems right now.

    You have other questions and Suggestions, please feel free to ask us, we will do our best to serve you.
