| Place of Origin: | HENAN |
| Brand Name: | Yinchen |
| Certification: | ISO SGS CE |
| Model Number: | CWDR/CLDR |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | usd 5000-99800 set |
| Packaging Details: | 1.Package: Regular package or nut package; 2.Transportation: By land or by sea , it depends on the exporting areas. |
| Delivery Time: | 1-20 working days |
| Payment Terms: | L/C, T/T, MoneyGram |
| Supply Ability: | 5000 set month |
| Product Name: | Yinchen Brand CLDR/CWDR Series 0.24-2.1 Mw 99% Thermal Efficiency High Efficiency Electric Boiler | Rated Water Output/return Temperature: | 85/70 ℃, 85/60 ℃, 95/70 ℃ |
|---|---|---|---|
| Type: | Horizontal/ Vertical | Pressure: | 0/1.0 Mpa |
| Burning Type: | Electric Heating | Rated Thermal Power: | 0.35-2.1 Mw |
| Power Supply: | 350v 50hz Or Customized | Heating Square: | 2460-22500 M³ |
| High Light: | industrial electric steam boiler,high efficiency electric boiler |
||
| Type | CLDR/CWDR |
| Capacity | 0.24-2.1 mw |
| output | hot water |

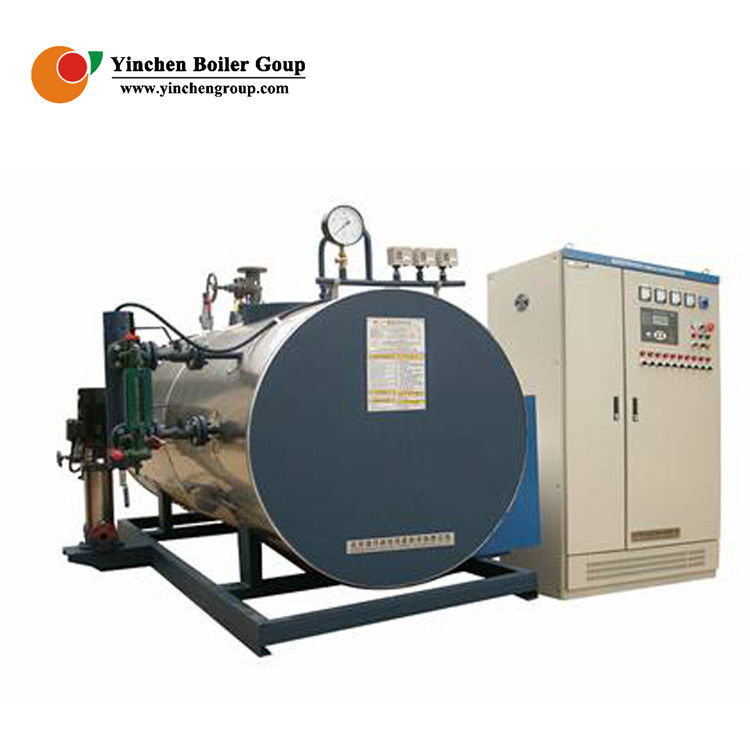

Introduction
electric hot water boilers adopt the separation method of electric control cabinet of furnace body, which avoids thermal aging of electrical components and affects service life.
The electric heat pipe is made of high quality products at home and abroad. Its normal service life is about 20,000 hours, and its thermal efficiency is nearly 99%. It runs smoothly and cleanly, meets the requirements of environmental protection, and does not emit NOx (nitrogen oxides) into the atmosphere. The operation adopts PLC control system, free operation button, free indicator lamp, touch screen panel, Chinese and English display, man-machine dialogue, operation authorization, real-time information and automatic page turning.
Feature
1. To ensure the continuous production of high quality steam, optimum design is adopted and the design principles of minimum body and maximum steam space are followed.
2. High-temperature cables can reach 180 degrees Celsius by using high-quality electrothermal and electrical components to ensure the safe operation of the boiler.
3. Miniature size, elegant matte surface, exquisite style;
4. Boilers are equipped with protective measures, such as grounding, leakage, pressure protection and water level control.
Technical paremeters:
| Type |
Rated Thermal Power (Mw) |
Rated Pressure (Mpa) |
Rated Supply/Return Water Temperature (℃) |
Heating Area (㎡) |
Hot Water Capacity (m³/h) △1=25℃ |
Circulating Water (m³/h) |
Power Supply (V/Hz) |
Electric Current (A) |
Thermal Efficiency (%) |
Supply/ Return Water Diameter (mm)
|
Drainage diameter (mm) |
Size (mm) |
| CLDR0.24-85/70 | 0.24 | 0 | 85/70 | 2460 | 5.6 | 13 | 380/50 | 365 |
98% -99% |
DN80 | DN40 |
1800× 1150× 1900 |
| CLDR0.35-85/70 | 0.35 | 3750 | 9 | 20 | 532 | DN80 | DN40 |
1800× 1150× 1900 |
||||
| CWDR0.35-85/60 | 0.35 | 0 | 85/60 | 3750 | 9 | 20 | 532 | DN80 | DN40 |
2300× 770× 1200 |
||
| CWDR0.5-95/70 | 0.5 | 0/1.0 | 95/70 | 5000 | 13 | 28.7/17.2 | 760 | DN80 | DN40 |
2300× 870× 1476 |
||
| CWDR0.7-95/70 | 0.7 | 7500 | 18 | 40/24 | 1064 | DN80 | DN40 |
2300× 1200× 1782 |
||||
| CWDR1.05-95/70 | 1.05 | 112500 | 27 | 60/36 | 1595 | DN100 | DN40 |
2300× 1300× 1900 |
||||
| CWDR1.4-95/70 | 1.4 | 15000 | 36 | 80/48 | 2127 | DN200 | DN40 |
3300× 1752× 2000 |
||||
| CWDR2.1-95/70 | 2.1 | 22500 | 54 | 120/72 | 3191 | DN200 | DN40 |
3300× 1953× 2300 |
| Packaging | Standard Export Package:Regular packing or nude packing. |
| Transportation | By land or by sea, depended on the exporting area. |
