|Place of Origin:||China|
|Certification:||ISO SGS CE|
|Minimum Order Quantity:||1|
|Price:||usd 3000-25000 set|
|Packaging Details:||The boiler body,big accessory and chimney is naked packaged , small spare parts will be packed by standard wooden case.|
|Delivery Time:||1-20 working days|
|Payment Terms:||L/C, T/T, MoneyGram|
|Supply Ability:||5000 set per year|
|Name:||Automatic Control 300kg Diesel Oil Steam Boiler For Food Industry||Boiler Type:||Vertical Type|
|Steam Temperature:||100-184 ℃||Boiler Series:||LHS Oil Gas Fired Boiler|
|Design Fuel:||Diesel Oil,heavy Oil,natural Gas,LPG,LNG,CNG Etc||Application:||Industry|
vertical water tube boiler,
simple vertical boiler
Henan Yinchen Boiler Group Co.,Ltd was founded at the beginning of 1976, which has a registered capital of 51.66 million. Its headquarters is in the industrial district in Fucaolou town, Taikang county of Henan province. The production factory is adjacent to Yong Deng high-speed, and the 311 national road is also through this district, so it has very convenient transportation conditions.
Besides, it is one of the key leading enterprises which firstly get the National Boiler Manufacturing License. With the manufacturing license qualification of "B" class boiler and "D2"class pressure vessel, it is director of China Industrial Boiler Association, member unit of China Welding Association and the enterprise of emphasizing the contract and credit in Henan province. Our company is the Ministry of Machinery sentinel industrial boilers export enterprises, which have already exported more than 60 countries and regions. The products have already passed ISO9001-2000international quality system certification and CE certificate.

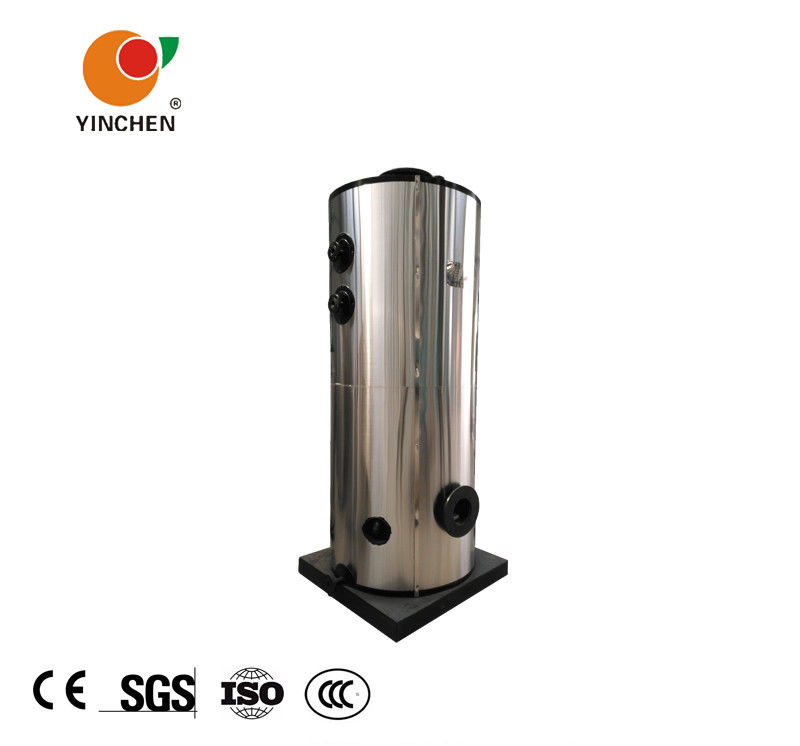

LHS fire tube vertical boiler is packaged internal combustion bent fire-tube boiler.The gas goes into burner from external and will be lighted through automatic fuel adjustment and ignition.The high temperature flames wash water tubes from top of boiler and smoke turns around at the bottom of boiler, goes up and out through smoke flue and chimney.
The boiler is equiped with international famous burner of high performance, fulfill automatic burning ratio and water supplying adjustment, automatic temperature, pressure and water level controll and high or low pressure, high temperature and low water level alarm.
Name: gas(oil) steam boiler
Rated capacity: 100kg/h to 500kg/h
Rated steam pressure: 0.4Mpa/0.7Mpa
Rated steam temperature : 151°C/170 °C
Fuel: Light oil, Heavy oil, Natural gas, Liquid gas, City gas etc.
Model: LHS specialized gas(oil) boiler
Parameters of Boiler
|Rated Steam Pressure(Mpa)||0.4,0.7|
|Steam Temperature(℃)||151, 171|
|Feed Water Temperature(℃)||20|
|Type of Burning||Two-section Type|
|Suitable Fuel||Diesel oil, Heavy oil, Natural gas etc.|
|Fuel Consumption||Diesel oil(kg/h)||6.6||9.75||14||18||34|
|Main Steam Port||DN40||DN50||DN65||DN125||DN125|
|Feed Water Inlet||DN20||DN25||DN32||DN40||DN40|
|Total Electrical Power Rating(Kw)||1.1||1.1||2.66||2.66||2.96|
LHS vertical automatic feeding gas or oil fired boiler is ideal heat-producing and drying equipment for textile industry, pharmaceutical industry, rice mill industry, garment factory, chemical industries, power station, food industries, hotel, laundry, laboratory, building heating, school, bath center, administrative institution, and so on.
Pre-sale service: Provide relative technical data,foundation drawing,layout drawing,boiler room drawing and general drawing.
After-sale service:Help customer installation and commissioning. Free maintenance and repair for one year.
