| Place of Origin: | HENAN |
| Brand Name: | Yinchen |
| Certification: | ISO SGS CE |
| Model Number: | WNS |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | usd 5000-99800 set |
| Packaging Details: | 1.Package: Regular package or nut package; 2.Transportation: By land or by sea , it depends on the exporting areas. |
| Delivery Time: | 1-20 working days |
| Payment Terms: | L/C, T/T, MoneyGram |
| Supply Ability: | 5000 set month |
| Product Name: | CE Factory Reasonable Price Vertical Electric Steam Heating Boiler | Usage: | Industry |
|---|---|---|---|
| Feed Water Temperature: | 20 ℃ | Type: | Vertical |
| Fuel: | Electric | Output: | Steam / Hot Water |
| Steam Temperature: | 151-170℃ | Rated Output: | 0.1-2 T/h |
| Pressure: | 0.4-0.7 Mpa | ||
| High Light: | electrically heated steam boilers,high efficiency electric boiler |
||

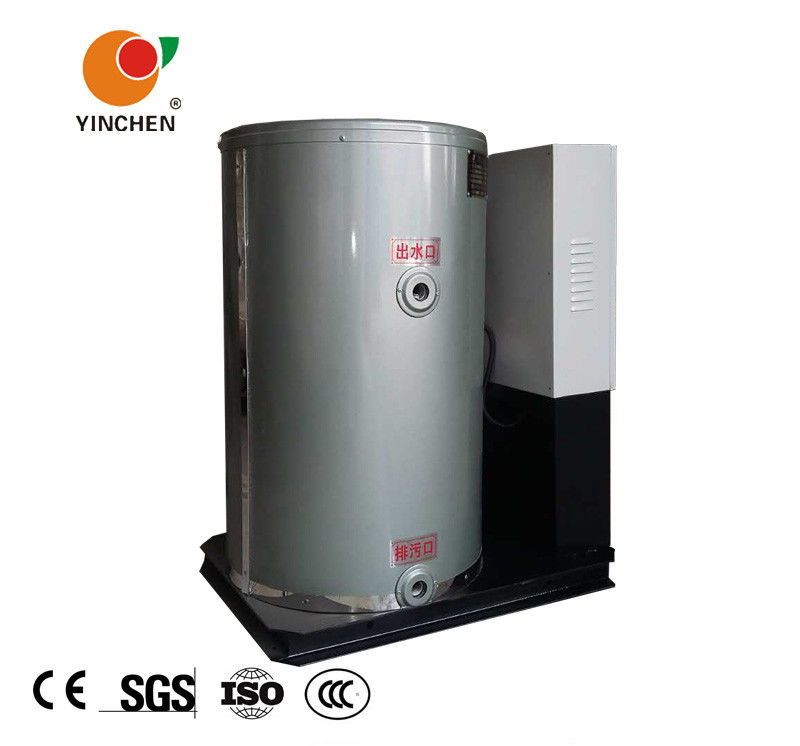

LDR Electric Steam Boiler Description
The separation mode of electric control cabinet is adopted to avoid the thermal aging of electrical components and the service life.The electric heating tube selects the domestic and foreign high-quality products, the service life is long, the thermal efficiency is nearly 99%, the operation is quiet, clean, conforms to the environmental protection requirement, does not discharge NOX to the atmosphere.The operation adopts PLC control system, all-hands-free operation button, all-hands-free indicator light, touch screen panel, Chinese and English display, man-machine dialogue, operation authorization, real-time information, automatic turning page.
LDR Electric Steam Boiler Features
1. The steam space is large and the steam quality is good.
2. Automatic intelligent control technology, no need for special care.Flexible working mode, can be set as manual or automatic operation.
3. It has a full range of protection functions, leakage protection, water shortage protection, ground protection, steam over pressure protection, over current protection, power protection, etc.
4. No noise, no pollution, high thermal efficiency, the boiler body adopts high quality and high efficiency thermal insulation material for insulation, low heat loss, energy saving and consumption.
5. The electric heating tube and the furnace are connected by flange, which is convenient for disassembly and maintenance.
6. The boiler outer packing adopts the famous color board package design, the appearance is beautiful and easy, not easy to rust.
Technical paremeters:
| Type | Rated Output (T/H) | Rated Steam Pressure (Mpa) | Steam Temperature (°C) | Feed Water Temperature (°C) | Rated Operating Voltage (V) | Size (M) |
| LDR0.1-0.4 | 0.1 | 0.4 | 151 | 20 | 380 | 1.1x0.85x2.6 |
| LDR0.1-0.4 | 0.1 | 1.1x0.85x2.6 | ||||
| LDR0.2-0.4 | 0.2 | 1.2x0.96x2.5 | ||||
| LDR0.3-0.4 | 0.3 | 1.35x1.12x2.36 | ||||
| LDR0.4-0.4 | 0.4 | 1.35x1.12x2.65 | ||||
| LDR0.5-0.4/0.7 | 0.5 | 0.4(0.7) | 151(170) | 1.7x1.2x2.72 | ||
| LDR0.6-0.4/0.7 | 0.6 | 2.5x1.85x1.7 | ||||
| LDR0.7-0.4/0.7 | 0.7 | 2.65x1.76x1.33 | ||||
| LDR0.8-0.4/0.7 | 0.8 | 2.85x1.76x1.93 | ||||
| LDR0.9-0.4/0.7 | 0.9 | 3.2x1.76x1.93 | ||||
| LDR1-0.4/0.7 | 1 | 3.42x1.76x1.93 | ||||
| LDR1.4-0.4/0.7 | 1.4 | 3.52x1.86x1.93 | ||||
| LDR2-0.4/0.7 | 2 | 3.7x1.9x2.1 |
Company introduce:
Henan Yinchen Boiler Group Co.,Ltd is a professional boiler manufacturer,the company was founded on over 20 years experience in the design and manufacture of industry advanced technology. We have ISO9001:2008 International Quality System Certification,and are specialized in the production of steam boiler, hot water boiler,thermal oil boiler,autoclave and other pressure vessels.We have an independent R&D institution,which has 10 professional engineer,using auto CAD design and engaging in the development of advanced boiler equipments.
Qulification&Honor
All of our products are produced according to the international quality standards,such as ISO,CE.
We are the manufacturer of electric boiler, gas and diesel oil fired boiler,coal ,wood and biomass fired boiler.you can choose the model you like to inquiry us.
Before the Quotation Please Confirm the following parameters first, then we can recommend right boiler model for you with good price.
If you are interested in our boilers,please inquiry now!
