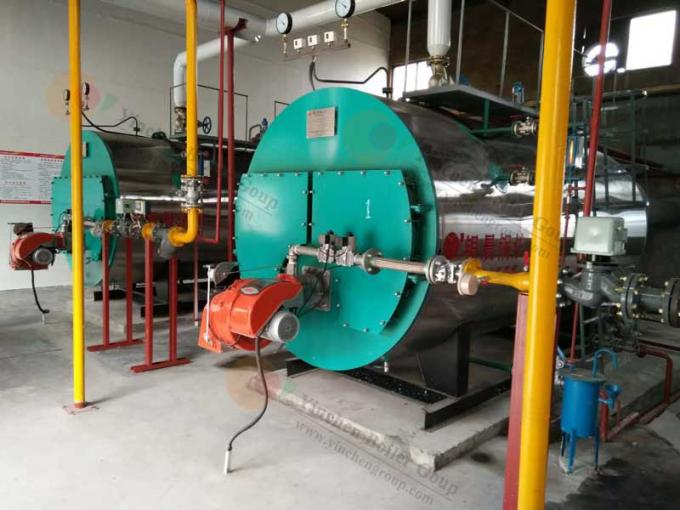

30-1300hp Industrial Gas Fired Boilers / Textile Industry Horizontal Steam Boiler

30-1300hp Industrial Gas Fired Boilers / Textile Industry Horizontal Steam Boiler

    • 30-1300hp Industrial Gas Fired Boilers / Textile Industry Horizontal Steam Boiler
    • 30-1300hp Industrial Gas Fired Boilers / Textile Industry Horizontal Steam Boiler
  • 30-1300hp Industrial Gas Fired Boilers / Textile Industry Horizontal Steam Boiler

    Product Details:

    Place of Origin: China
    Brand Name: Yinchen
    Certification: ISO SGS CE
    Model Number: WNS

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiated by both parties
    Price: 3500-80000USD
    Packaging Details: Package: Regular package or nude package with protective film
    Delivery Time: 10-15 work days
    Payment Terms: L/C, T/T, MoneyGram, Western Union
    Contact Now
    Detailed Product Description
    Product Name: Industrial Steam Boiler For Textile Industry Material: Boiler Special Steel
    Fuel Type: Oil,Gas Color: Customized
    Shipping: Ocean Or Railway Usage: All Kinds Of Industry
    Structure: Fire Tube
    High Light:

    propane fired steam boiler

    ,

    3 pass fire tube boiler

    0.5-10tons/h 30-1300hp Gas Oil Heating Industrial Steam Boiler for Textile industry



    Product Feature:



    1. Adopted popular internal combustion three-return full wet back boiler, boiler radiation heating surface is whole corrugated furnace increase the heated area and satisfied self expansion of the hot furnace.

    2. Adopted screw smoke tube, enforce the heating efficiency.

    3, Rear- view device design, easy to observing the working status.

    4. Auto protection when Over temperature, Over pressure, Water leaking, Water shortage, Flame-out etc. guarantee of safe running .

    5. 3 style exterior decoration you can choose:Lathe work , mirror finished stainless steel, Matt stainless steel.







    Working principle of gas steam boiler



    After the fuel and air are fully mixed, they are ignited and burned to produce high-temperature flue gas. The boiler furnace is positive pressure.



    After the high-temperature flue gas is burned in the furnace, it enters the second return thread pipe bundle through the back combustion chamber, and then passes through the front cigarette box. Into the third return thread pipe bundle, and finally discharged into the atmosphere.



    The boiler furnace, the back combustion chamber and the smoke pipe are all immersed in water. During the flow of the flue gas, these components exchange heat by the temperature difference between the flue gas and the water, and the steam is generated by the main steam valve.







    Technical Paremeter:



    Type WNS0.5-1.0-Y(Q) WNS1-1.0-Y(Q) WNS2-1.0-Y(Q) WNS3-1.25-Y(Q) WNS4-1.25-Y(Q) WNS6-1.25-Y(Q) WNS8-1.25-Y(Q) WNS10-1.25-Y(Q)

    Rated Output

    (t/h)

    0.5 1 2 3 4 6 8 10

    Rated Steam Pressure

    (Mpa)

    1.0 1.0 1.25 1.25 1.25 1.25 1.25 1.25

    Steam Temperature

    (℃)

    184 184 194 194 194 198 194 194

    Thermal Efficiency

    (%)

    92.2 92.4 92.5 92.5 92.8 93.2 93.5 93.8

    Power Consumption

    (Kw)

    2.96

    (2.96)

    4.4/8.9

    (3.7)

    7/20.2

    (7)

    9.5/22.7

    (10.5)

    13/26.2

    (13.5)

    23/45.4

    (20.5)

    24/37.5

    (24)

    39.5/52

    (39.5)

    Suitable Fuel Light Oil/ Heavy oil, Natural gas/ Town gas, Coke oven gas





    Prouduct Application:



    WNS series is widely used in garment factory, textile factory, brick making plant, food processing plant, beer processing, rice milling field, chemical plant, pharmaceutical factory, etc.







    FAQ:

    How to choose a boiler type?

    Identify the type of boiler you want(steam boiler or hot water boiler).

    The boiler capacity,pressure,and fuel(oil,gas,biomass,coal),or you can consult us.

    How about the installation?

    Guide installation online or we can provide staff installation by our staffs, but you have to afford the extra cost if If we send professional staff overseas to install it.

    How about your delivery time?

    Generally, it will take 10 to 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

    What about after-sale service?

    We will supply professional after-sale service team as soon as we receiving your problem feedback, we will dispatch our engineers to your country and solve your problems right now.

    You have other questions and Suggestions, please feel free to ask us, we will do our best to serve you.
